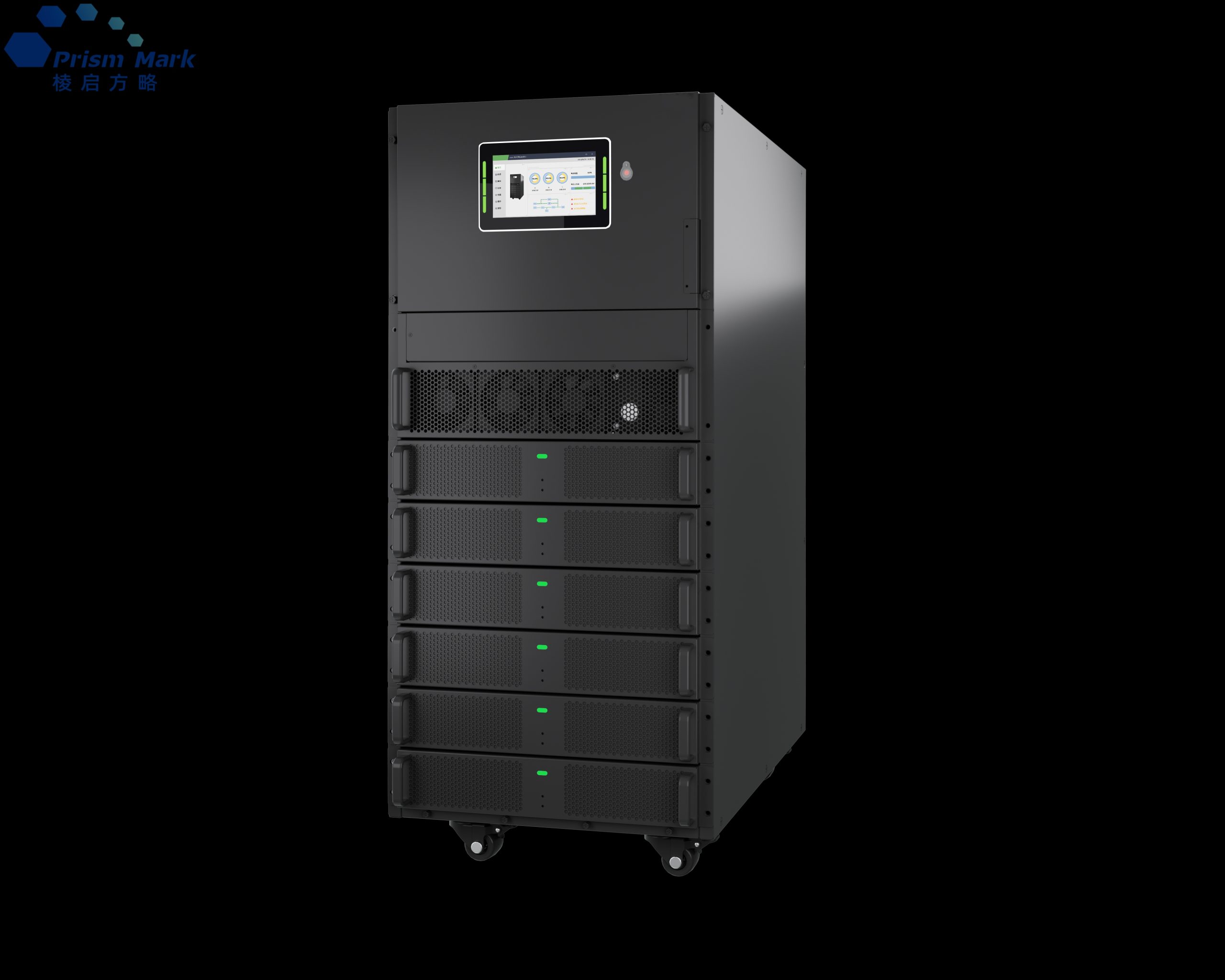

180KW Intelligent Modular UPS:

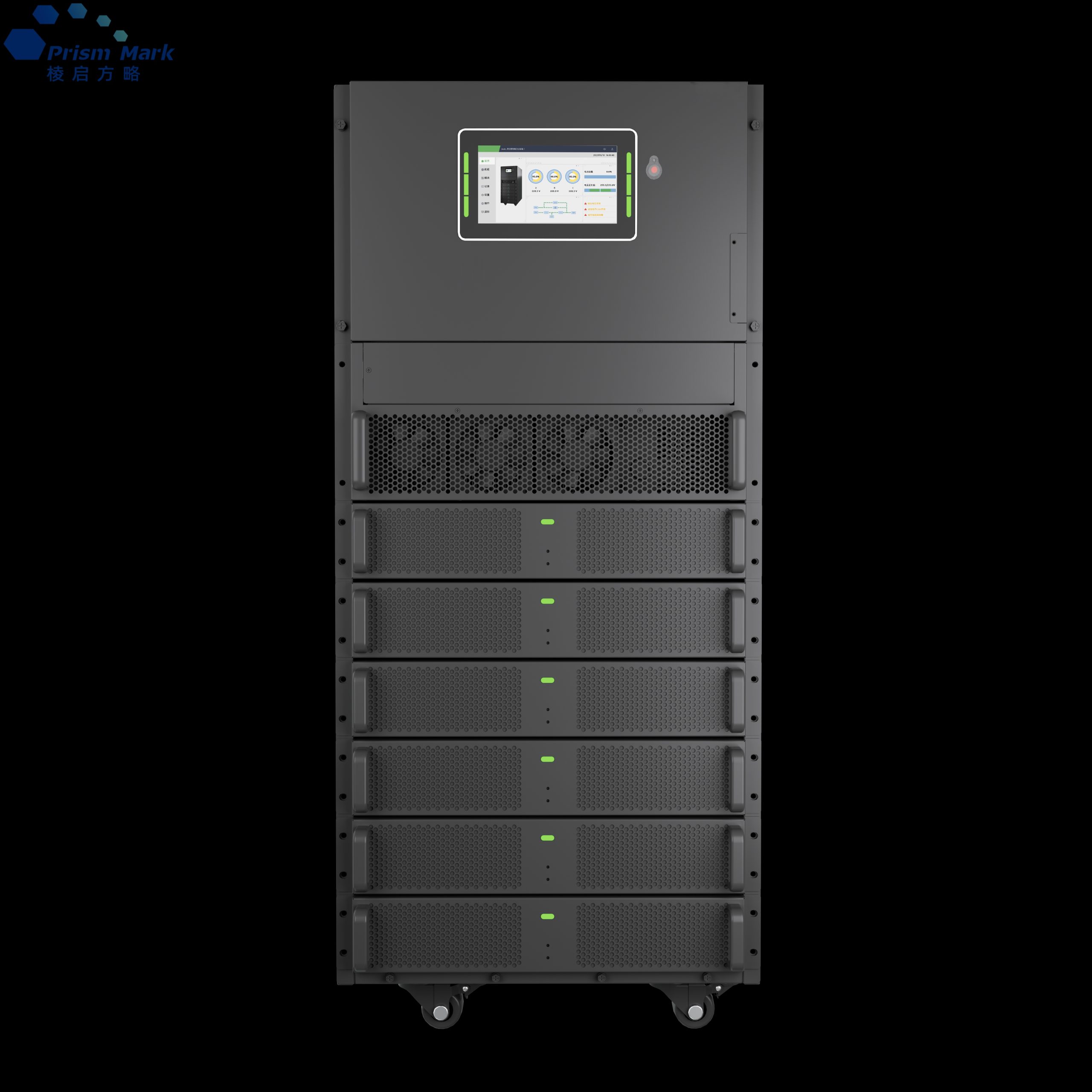

180KW Intelligent Modular UPS offers high efficiency with ≥96.5% in main road mode and >96.5% in battery mode. It features a 7-inch LCD+LED color touch screen for easy operation, meets IEC62040-1 and IEC60950-1 safety standards, and complies with IEC62040-2 EMC regulations. With an IP20 protection rating, it ensures reliable performance in various environments. The device supports USB, RS232, RS485, dry contact card, and battery cold start as standard, with optional SNMP, extended dry contact cards, and wireless connectivity. It operates in a temperature range of 0-40°C and is designed for both efficiency and versatility.
Intelligent Modular UPS Key Features:
Reliability and Stability: With advanced control logic and excellent output consistency, combined with a new isolation airflow design, the device offers comprehensive protection upgrades and multi-point temperature monitoring alerts, ensuring stable operation.
Flexible Expansion: The device supports flexible capacity expansion, aligning with an “on-demand expansion” investment plan. It can dynamically grow with the business, meeting future equipment expansion needs while effectively reducing initial investment costs.
High Redundancy Design: Both power and control modules feature full redundancy, with hot-swappable technology, allowing users to easily remove or replace power modules during system operation without affecting the system’s normal operation or output.
Convenient After-Sales Maintenance: Maintenance is simple with low technical requirements, reducing maintenance time to minutes, while the system continues to operate normally without interruption during the entire maintenance process.
Intelligent Modular UPS Monitoring System:
Battery Internal Resistance Monitoring
To ensure maximum safety and prolong the battery’s lifespan, the UPS can be upgraded with optional accessories that monitor key parameters such as voltage, internal resistance, and temperature for each individual battery. This information is displayed in real-time on the UPS screen. (Optional feature)
Temperature Monitoring of Core Components
The UPS continuously monitors the temperature of critical heat-generating components in each power module. This includes the temperature of the three-phase IGBT in both the rectifier and inverter sections, as well as intake and exhaust temperatures. At least 8 temperature points are tracked, providing clear visibility and supporting self-aging verification.
Environmental Monitoring for Data Centers
The system allows monitoring of 4 temperature and humidity sensors, 2 water leakage detectors, 2 smoke detectors, and 4 sets of individual battery measurements, ensuring comprehensive monitoring of the environment.
Safety Intelligent Modular UPS:
With an IP20 protection rating, it effectively prevents solid objects (such as dust) from entering the equipment interior, ensuring its reliability in complex environments. The UPS screen integrates 128M Flash, supporting no less than 100,000 local history records and historical data storage. It can also support external SD card expansion to achieve unlimited data storage. Ensure data security to the greatest extent.
Intelligent Modular UPS Application:
It is widely applied in various industry fields such as government, finance, communication, education, transportation, meteorology, radio and television, industry and commerce, taxation, medical and health care, energy and power, etc.
