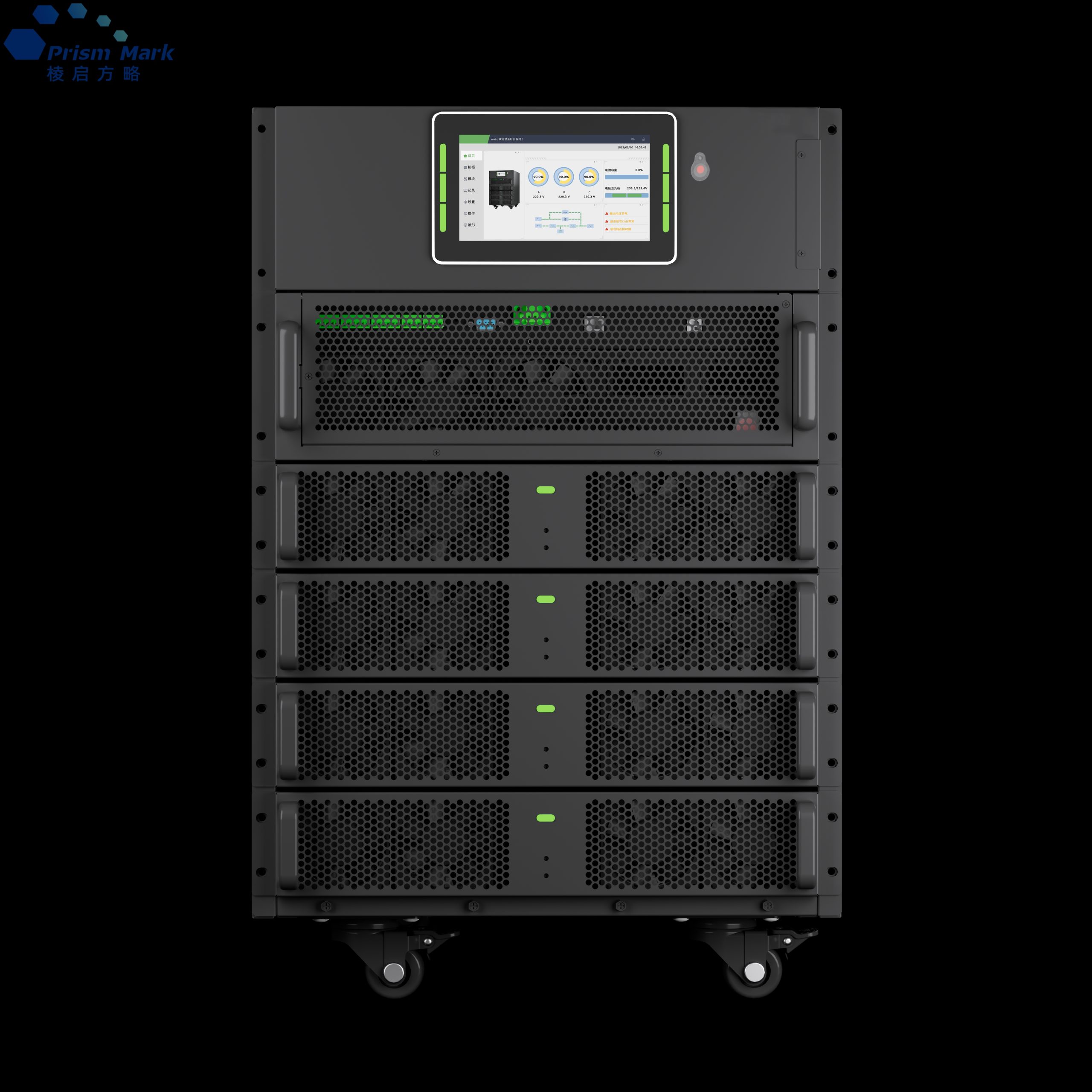

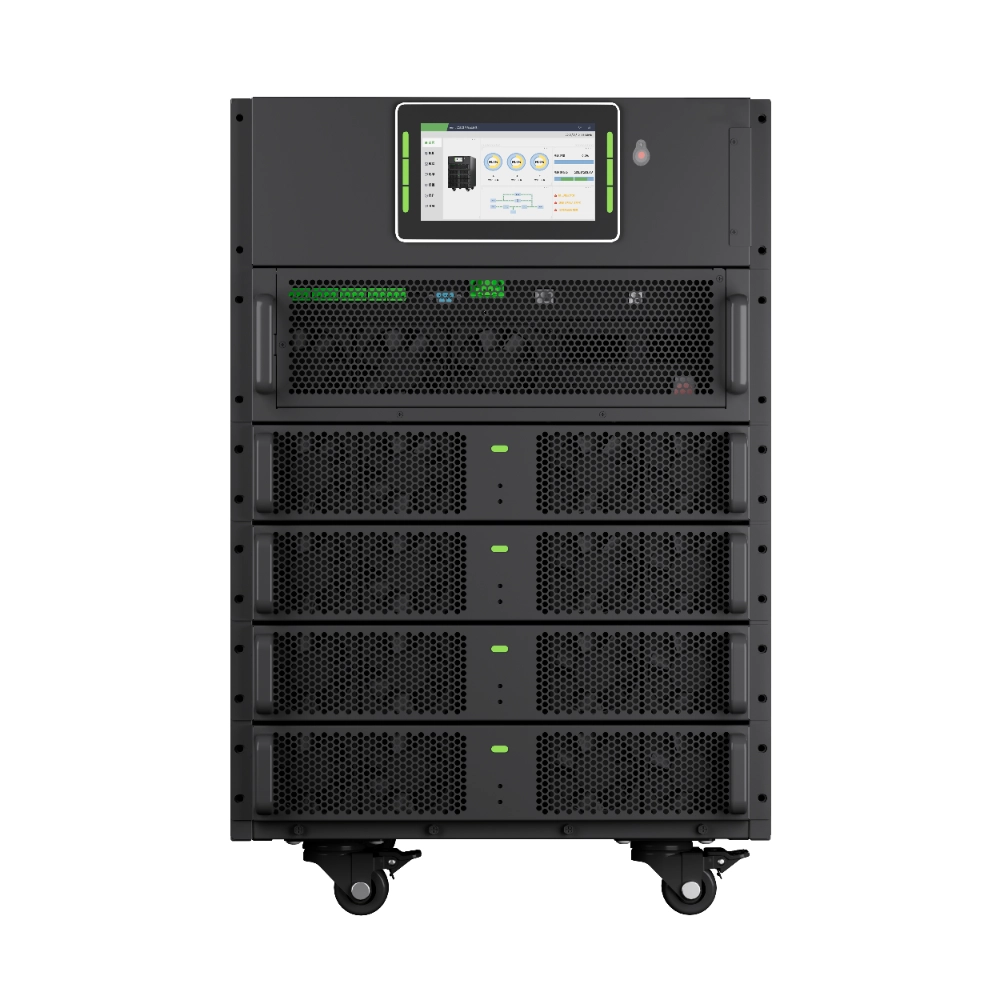

80kW Modular UPS Introduction：
80kW Modular UPS System is designed to handle a wide range of input specifications, making it highly adaptable for various applications. It supports a 3-phase input with neutral (3 + N + PE), and is compatible with input voltages of 380/400/415VAC (line voltage) or 220/230/240VAC (phase voltage). The system operates within a frequency range of 50/60Hz and ensures a power factor greater than 0.99 for optimal energy efficiency. With a low current distortion rate (THDi < 3% at 100% linear load), it minimizes harmonic interference. The input voltage range spans from 304-478VAC at full load, with the system intelligently derating from 100% to 50% when the voltage drops to between 304-228VAC, ensuring stable operation even under fluctuating power conditions.
Three-Phase Online UPS Working Mode:
| 3-Phase Input, 3-Phase Output | 3-Phase Input, Single-Phase Output |
| Single-Phase Input, Single-Phase Output | Double-Conversion Online Mode |
80kW 3 Phase Modular Online UPS Function：
1.High Power Density and Compact Design: Each 25kW module occupies only 2U space, suitable for rack-mounted installation, saving space and easy to maintain.
2.Modular and Redundant Design: Hot-swappable full modules, with redundant power and control parts, ensuring high availability and stability during system operation.
3.Energy-Efficient and Environmentally Friendly: System efficiency up to 96%, input power factor ≥0.99, supporting high performance and reduced energy consumption.
4.Real-Time Temperature and Environment Monitoring: Monitors multiple temperature points and environmental parameters, ensuring stable operation and early warnings.
5.Flexible Expansion and Low Maintenance Cost: Supports flexible scalability, dynamically growing based on user needs, while simplifying maintenance and reducing technical barriers and time.
6.Powerful Local Storage and Battery Monitoring: Built-in 128M Flash supporting storage of up to 100,000 historical records, with optional battery monitoring functions (resistance, temperature, voltage) to ensure battery safety and longevity.
Rack-Mounte Modular Online UPS Application:
It is widely applied in various industry fields such as government, finance, communication, education, transportation, meteorology, radio and television, industry and commerce, taxation, medical and health care, energy and power, etc.
