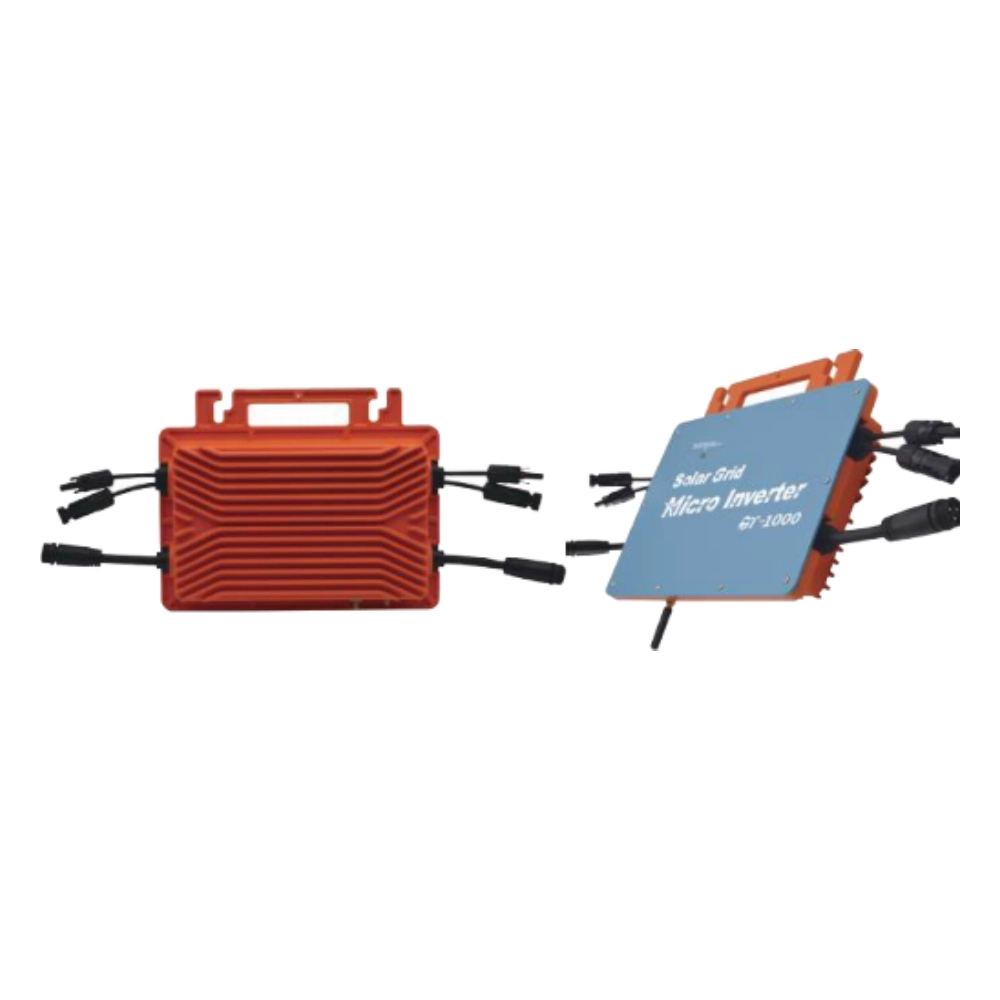

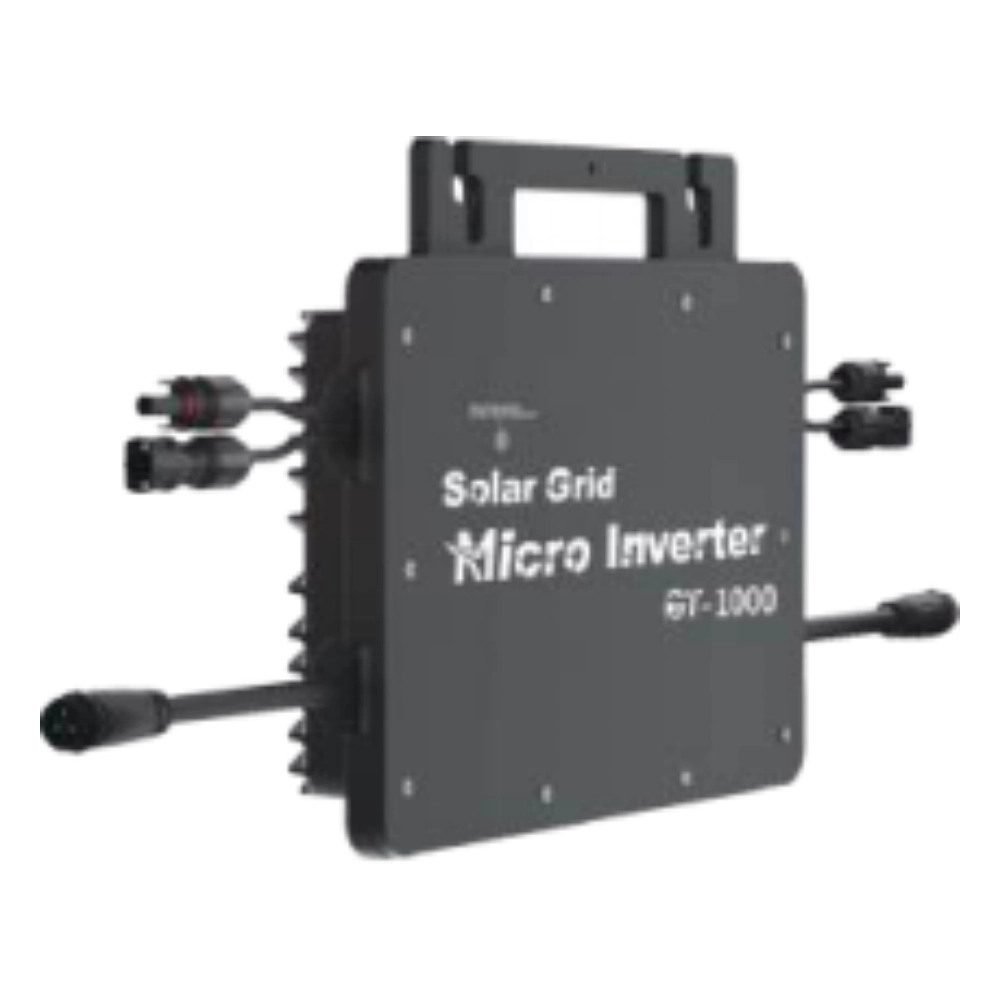

800W-1000W Anti-reverse ﬂow micro inverter

The anti-reverse ﬂow micro inverter comes with a RS485 interface, which can be connected to the collector to achieve the anti-reverse ﬂow function and prevent excess power from ﬂowing back to the grid. It is suitable for household power generation.

Features:
High-Efficiency MPPT: 99% conversion efficiency with dynamic power optimization.
Smart & Predictive: Automatically adjusts power based on forecasts, with real-time monitoring and alerts.
Built to Last: IP66 rated for durability in extreme conditions.
Guaranteed Quality: CE/VDE certified with in-house R&D and manufacturing.

Inquiry Now

WhatsApp

Introduction
Parameters
Download

Anti-reverse ﬂow micro inverter Features:

Maximum Power Point Tracking (MPPT)

99% Ultra-High Efficiency: Our MPPT function boasts a 99% conversion rate, significantly minimizing energy loss.
Dynamic Waveform Adjustment: The system dynamically adjusts voltage and current waveforms to improve efficiency across the entire load range.

Intelligent Control

Predictive Optimization: The system predicts weather changes and power consumption peaks and valleys, automatically adjusting output power to reduce the rate of power loss.
Real-Time Monitoring: Monitor equipment health in real-time via our app or cloud platform, with automatic fault notifications.

High Conversion Efficiency

Robust Protection: With an IP66 protection level and multiple circuit safeguards, the system operates stably in extreme environments.
Dynamic Waveform Adjustment: Voltage and current waveforms are dynamically adjusted to enhance efficiency across the entire load range.

Quality Assurance

Certified Safety: Our products comply with international safety certifications such as CE and VDE.
Integrated R&D and Production: As the original manufacturer, we integrate research and development with production to ensure guaranteed quality.

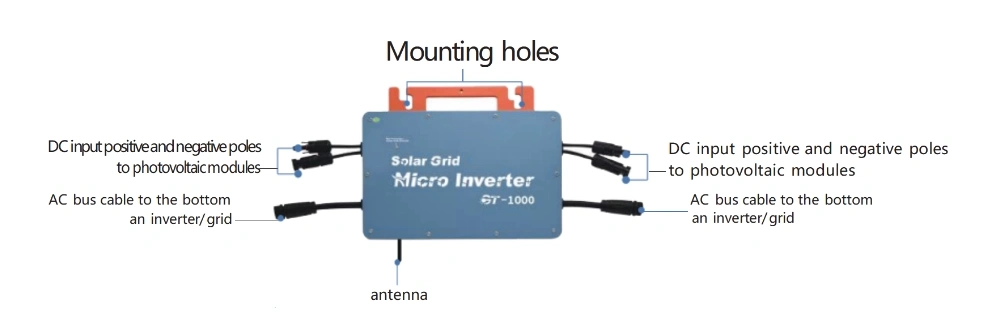

800W-1000W Anti-reverse ﬂow micro inverter Hardware

Anti-reverse ﬂow micro inverter application

model	800W 1000W
Input data (DC,PV)
Enter MC4 connector quantity	2 sets
MPPT voltage range	22V- 48V
Working voltage range	18V- 60V
Maximum input voltage	60V
Starting voltage	22V
Maximum input power	800W 1000W
aximum input current	15A*2
Output data(AC)
single phase grid	120V&230V
Rated output power	800W 1000W
Maximum output power	800W 1000W
Standard output current	@120VAC:6 . 6A/@230VAC:3 . 4A
Standard output current	@120VAC:8 . 3A/@230VAC:4 . 3A
Standard voltage output	120VAC /230VAC
Default output voltage range	90V- 140V/180V- 260V
Power factor	>0 . 99%
total harmonic distortion	TH D <5%
Work status view	Collector/TuyaAPP
eﬃciency
peak eﬃciency	95%
The nominal MPPT eﬃciency is	99 . 5%
Night power consumption	<1w
Mechanical data
Workingenvironmenttemperature range	- 40℃ to +65℃
Storage temperature range	- 40°C to +85°C
Product size and weight (WH D) Packing size and weight (WH D)	28cm22cm4.2cm / 2.3kg
	43.8cm26.2cm9.2cm / 3.05kg
Maximum current of AC bus cable	20A
Waterproof level	IP66
cooling mode	natural cooling
Other functions
Communication WIFI	WIFI(cloud monitoring )
Transformer design	High frequency transformer, no isolation
Transformer design	Equipment grounding is provided by the PEin the AC cable No other ground required
protection function	Isolation island protection,voltage protection
protection function	Frequency protection,temperature protection,current protection,etc.
Certiﬁcation	In metro , V DE4105, V DE0126, CE, EN50549 . . .
