600W-1000W GTB grid connected micro inverter

Designed for green energy systems, the GTB inverter delivers stable, pure electric power with exceptional efficiency. Its smart control technology and versatile application make it a reliable solution for homes, businesses, and industrial operations.

Features:
High Efficiency: Boasts a 99% conversion rate and dynamic voltage adjustment for top-tier efficiency.
Intelligent Control: Predicts weather and energy demand to automatically adjust output and reduce waste.
Extreme Durability: IP65 protection and multiple circuit safeguards ensure stable performance in harsh conditions.
Certified Quality: Meets international standards like CE and VDE, with quality guaranteed by integrated R&D and production.

Introduction

Parameters

Download

600W-1000W Micro Inverter Key Advantages

  • Exceptional Energy Efficiency: Our product boasts an ultra-high 99% conversion efficiency, significantly reducing energy loss. It intelligently adjusts voltage and current waveforms, ensuring optimal performance across the entire load range.
  • Robust and Reliable Protection: With an IP65 protection level and multiple circuit safeguards, this device guarantees stable operation even in the most extreme environments. Its dynamic adjustment of voltage and current also contributes to consistent efficiency.
  • Smart and Predictive Control: Experience intelligent power management that anticipates weather changes and power consumption peaks/valleys. The system automatically adjusts output to minimize light abandonment, and you’ll get real-time equipment health monitoring and automatic fault reminders via our app or the cloud.
  • Guaranteed Quality and Compliance: Rest assured knowing our product complies with international safety certifications like CE and VDE. As the original manufacturer, we integrate R&D and production, ensuring top-notch quality from start to finish.

600W-1000W Micro inverter Hardware Details

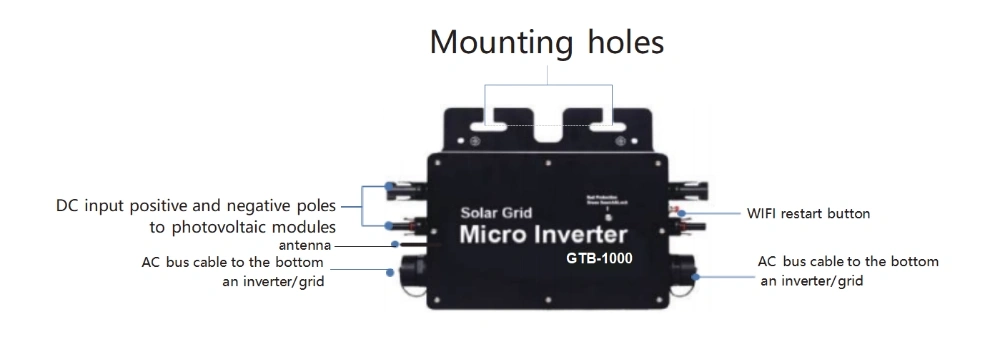

600W-1000W Micro inverter Hardware Details

Micro inverter application diagram

model 600W/700W/800W/1000W
Input data (DC,PV)
Enter MC4 connector quantity 2 sets
MPPT voltage range 22V- 48V
Working voltage range 20V- 50V
Maximum input voltage 50V
Starting voltage 22V
Maximum input power 600W/700W/800W/1000W
aximum input current 12A*2/14A*2/16A*2/18A*2
Output data(AC)
single phase grid 120V&230V
Rated output power 600W   700W   800W   1000W
Maximum output power 600W   700W   800W   1000W
Standard output current @120VAC:5A/@230VAC:2.6A @120VAC:5.8A/@230VAC:3A
@120VAC:6.6A/@230VAC:3.4A
@120VAC:7.4A/@230VAC:3.8A
Standard voltage output 120VAC /230VAC
Default output voltage range @120VAC:80V- 160V/@230VAC:180V- 270V
Power factor >0.99%
total harmonic distortion TH D <5%
efficiency
peak efficiency 95%
The nominal MPPT efficiency is 99.50%
Night power consumption <1w
Mechanical data
Workingenvironmenttemperature range - 40℃ to +65℃
Storage temperature range - 40°C to +85°C

Product size and weight (W*H *D)

Packing size and weight (W*H *D)

21cm*19.4cm*4.5cm/1.45kg   35.5cm*24cm*9.5cm/2.15kg
Maximum current of AC bus cable 20A
Waterproof level IP65
cooling mode natural cooling
Other functions
Communication WIFI WI FI  (cloud  monitoring )
Transformer design High frequency transformer, no isolation
Equipment grounding is provided by the PEin the AC cable No other ground required
protection function Isolation island protection,voltage protection
Frequency protection,temperature protection,current protection,etc.
Certification In metro , V DE4105, V DE0126, CE, EN50549.. .
