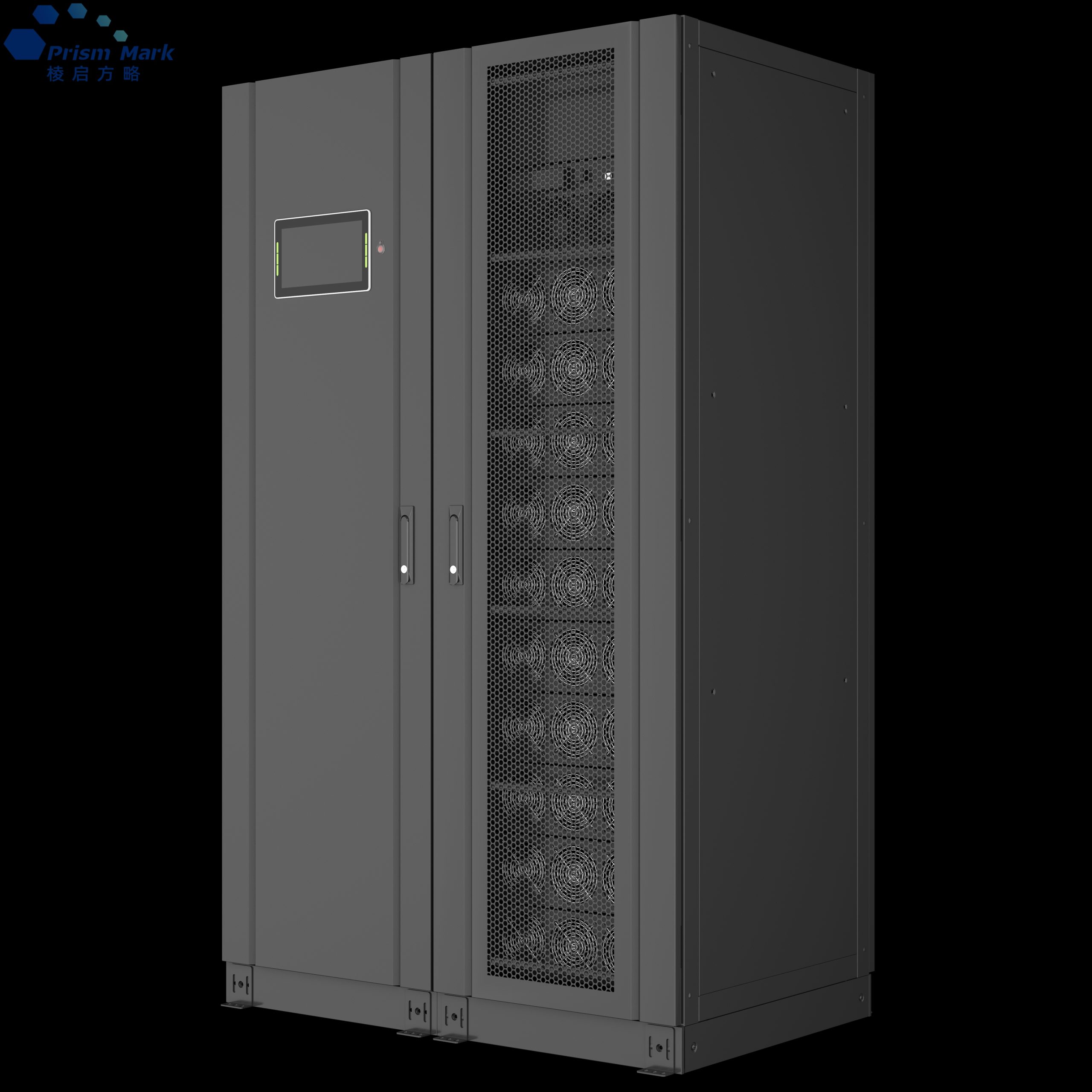

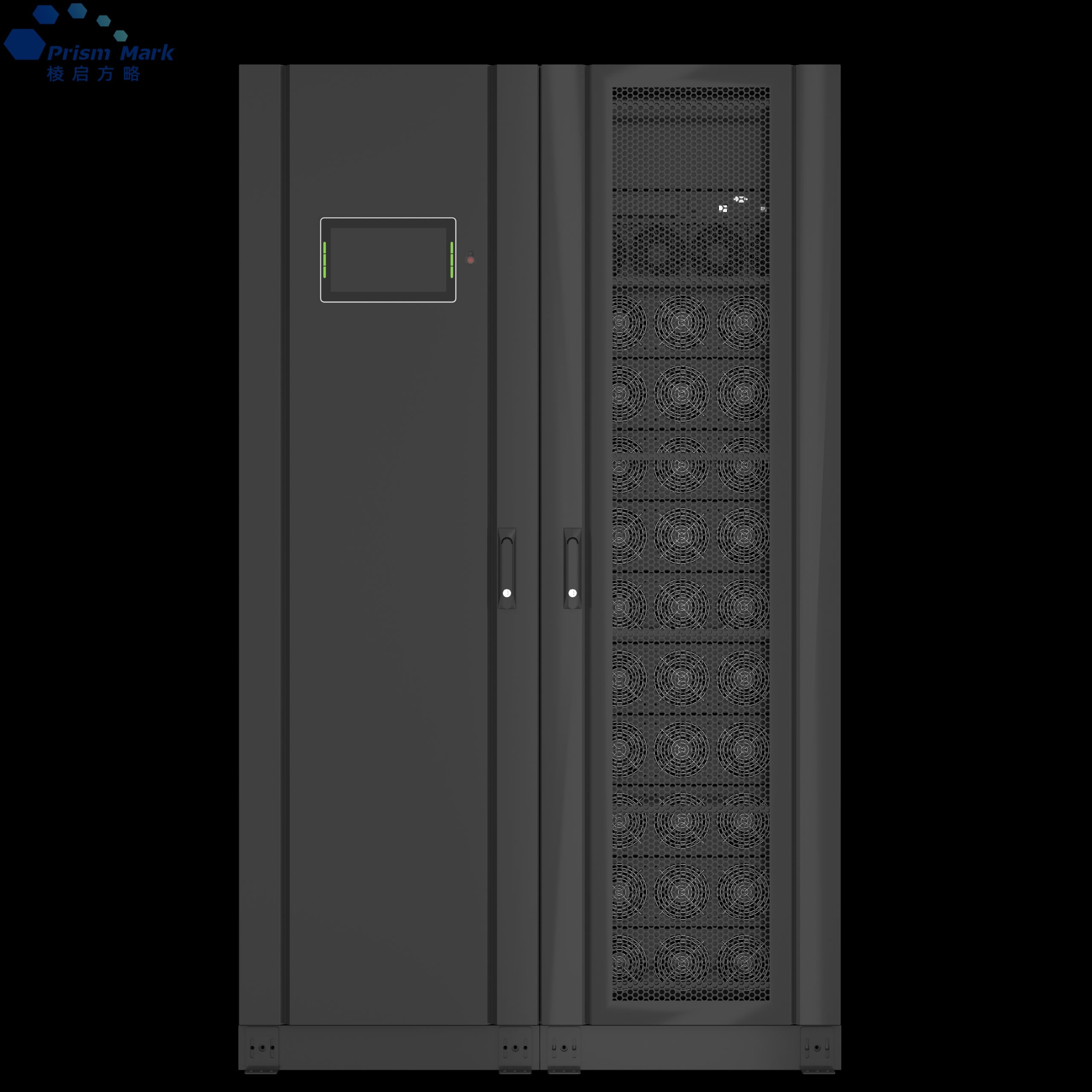

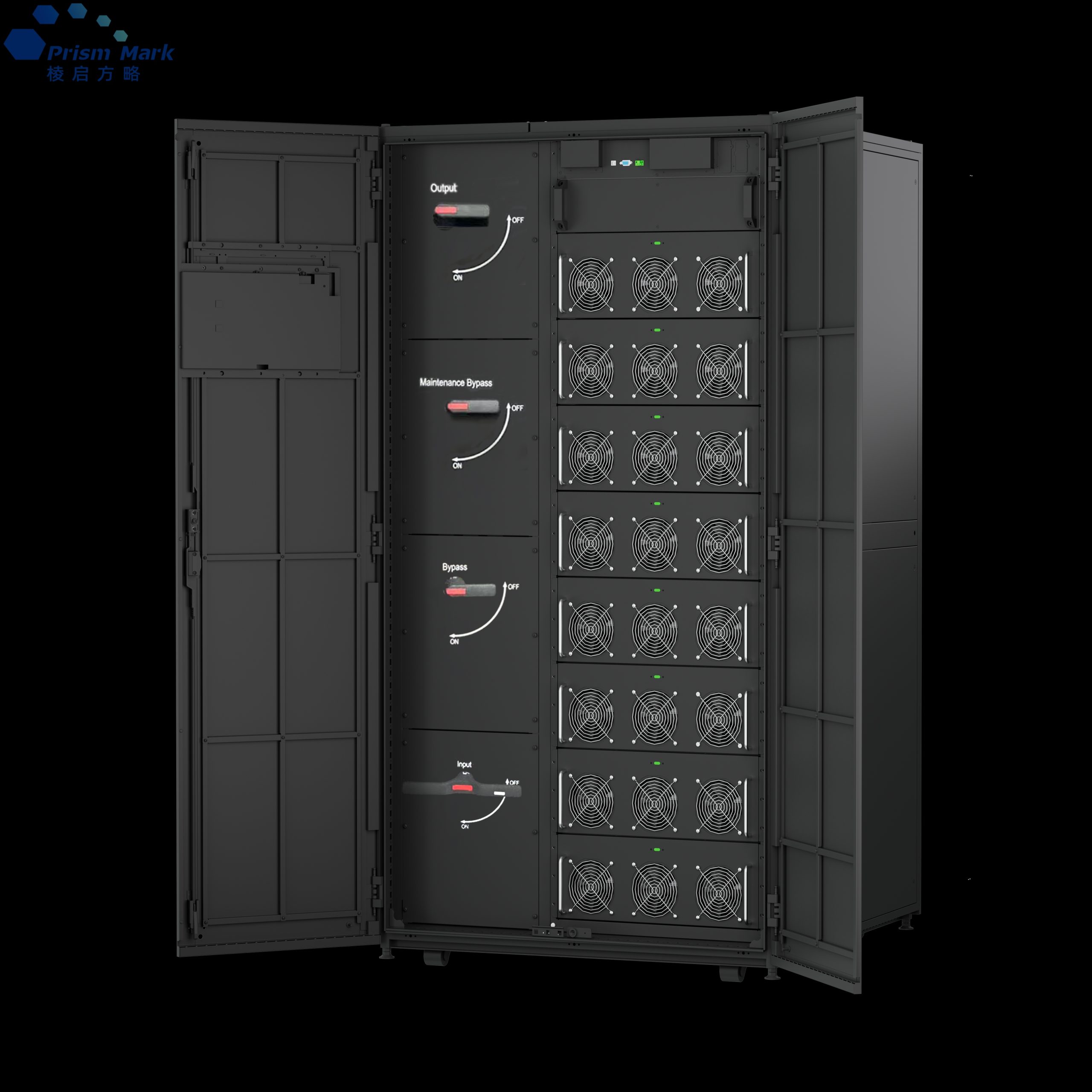

500KVA Smart Online 3 Phase Modular UPS:
The AC500/50 Smart Online 3 Phase Modular UPS is a high-performance power protection solution with a capacity of 500KVA/500kW, designed for demanding applications. It features a 3-phase + N line + PE input wiring configuration and a settable bypass voltage range, with default settings from -20% to +15%, and adjustable limits to suit various voltage requirements. The UPS offers robust bypass overload capacity, capable of handling 110% load for continuous operation, 101%-125% load for at least 5 minutes, 125%-150% load for 1 minute, and loads above 150% for up to 1 second. Its compact design includes a cabinet size of 1200x850x2000mm and module size of 440x475x140mm, making it suitable for a wide range of installations while ensuring optimal performance and reliability.
Smart Online 3 Phase Modular UPS Working Mode:
| 3-Phase Input, 3-Phase Output | 3-Phase Input, Single-Phase Output |
| Single-Phase Input, Single-Phase Output | Double-Conversion Online Mode |
500KVA Smart Online Modular UPS Key Advantage:
High Power Stability: Rated at 200KVA/200kW, supports input voltages of 380/400/415VAC (line) and 220/230/240VAC (phase), with a power factor >0.99 and THDi <2%.
Wide Voltage & Frequency Adaptability: Input voltage range of 304-478VAC, accepts frequency range of 40-70Hz, ensuring compatibility with various power environments.
Precise Output & Low Harmonic Distortion: Output voltage accuracy of ±1.0%, with total harmonic distortion under 1% for linear loads and under 5% for nonlinear loads.
Rapid Dynamic Response & Recovery: Dynamic response time <5% (20%-80%-20% load step), recovery time <20ms (0%-100%-0% load step).
Overload Protection: Bypasses after 1 hour at 110% load, 10 minutes at 125%, 1 minute at 150%, and automatically bypasses after 200ms when load exceeds 150%.
Precise Frequency Control & Phase Stability: Frequency accuracy of 0.10%, with tracking range from ±0.5Hz to ±5Hz, and phase accuracy of 120°±0.5°.
Smart Online Modular UPS Applications:
The Smart Modular UPS system ensures reliable power protection across various critical sectors. It is essential for government operations, finance institutions, communication services, education, transportation networks, meteorology stations, radio and television broadcasting, industry and commerce, taxation systems, medical and healthcare facilities, and energy and power infrastructure. Its modular design provides scalability, energy efficiency, and high reliability, making it crucial for uninterrupted operations in these industries.
