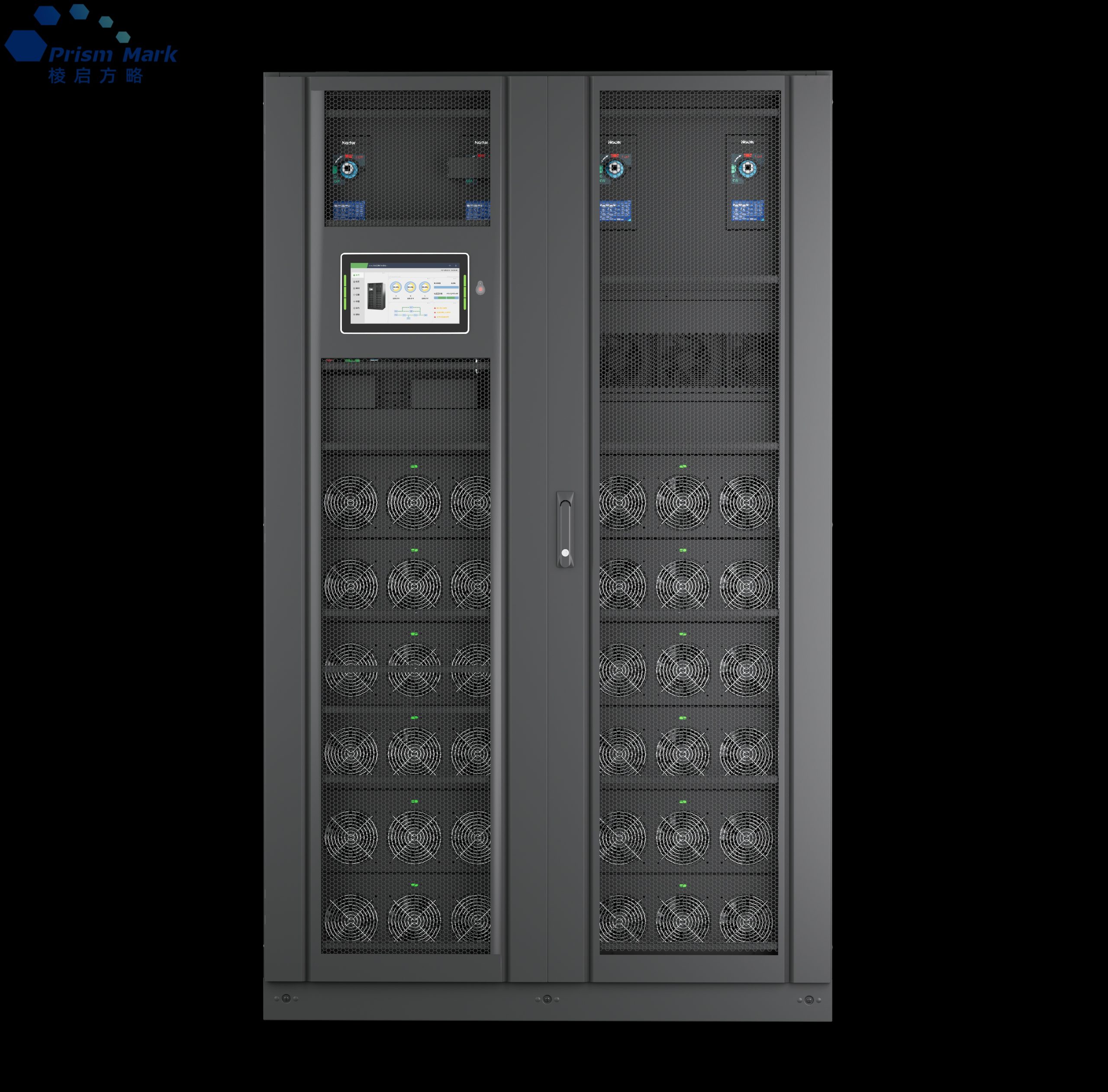

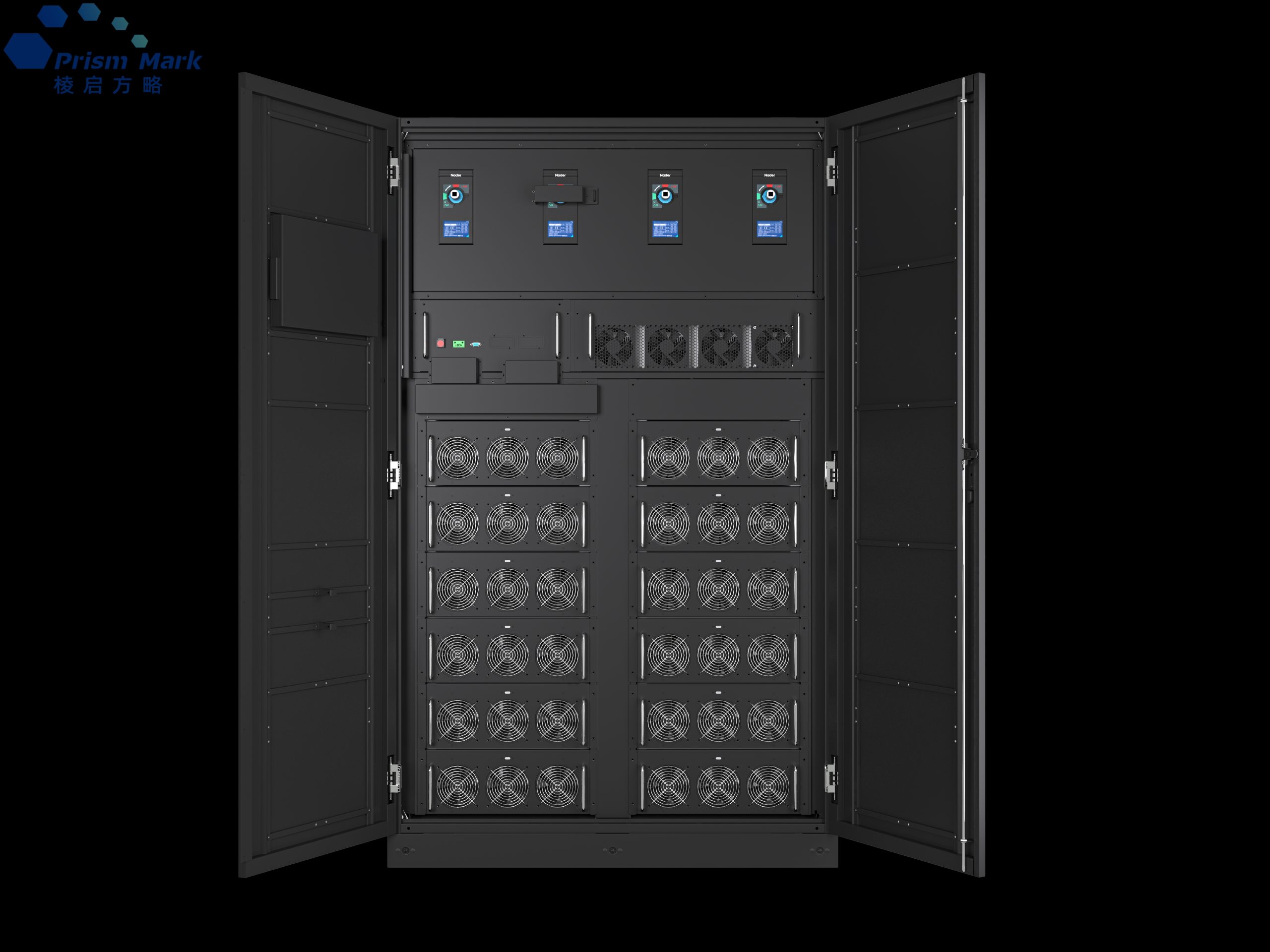

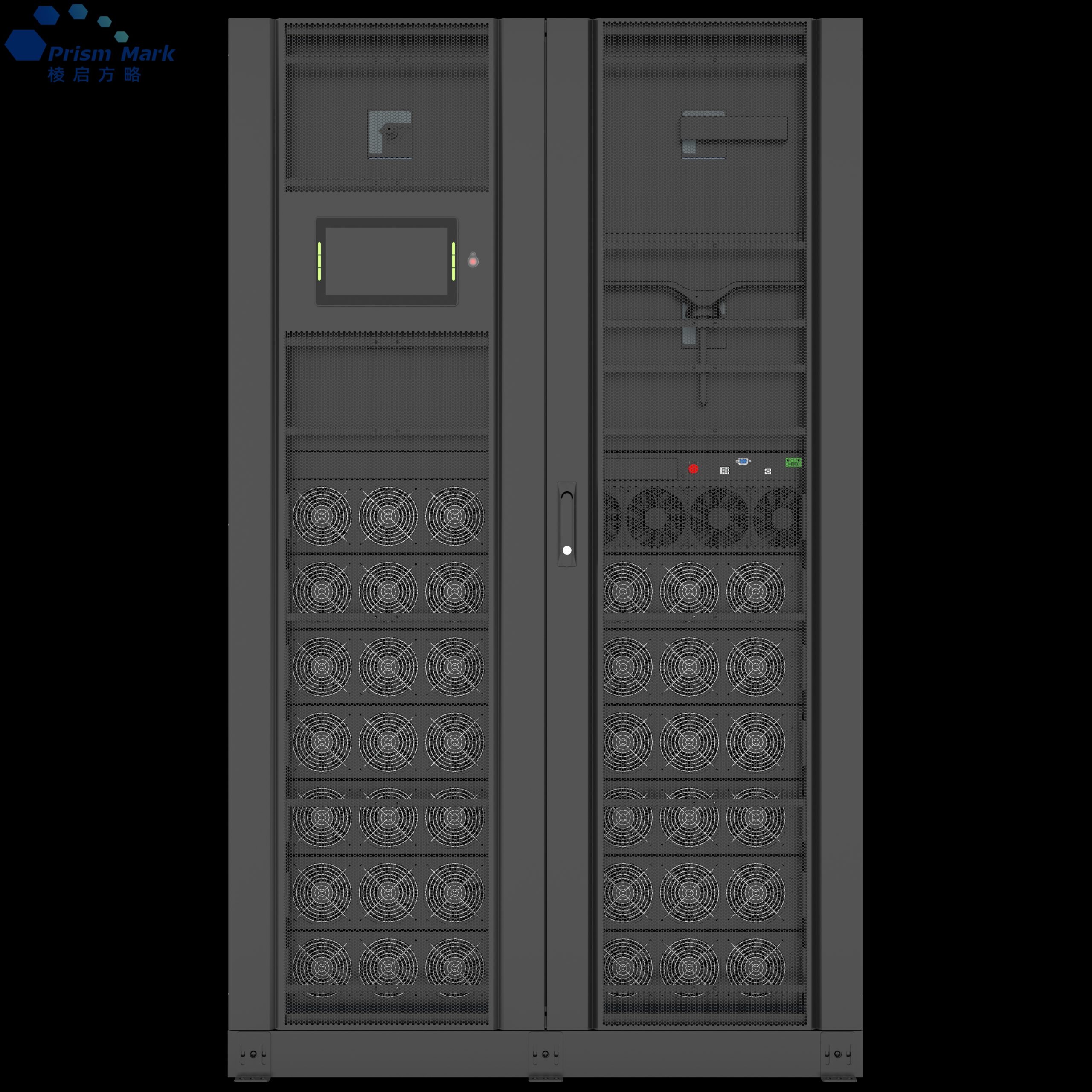

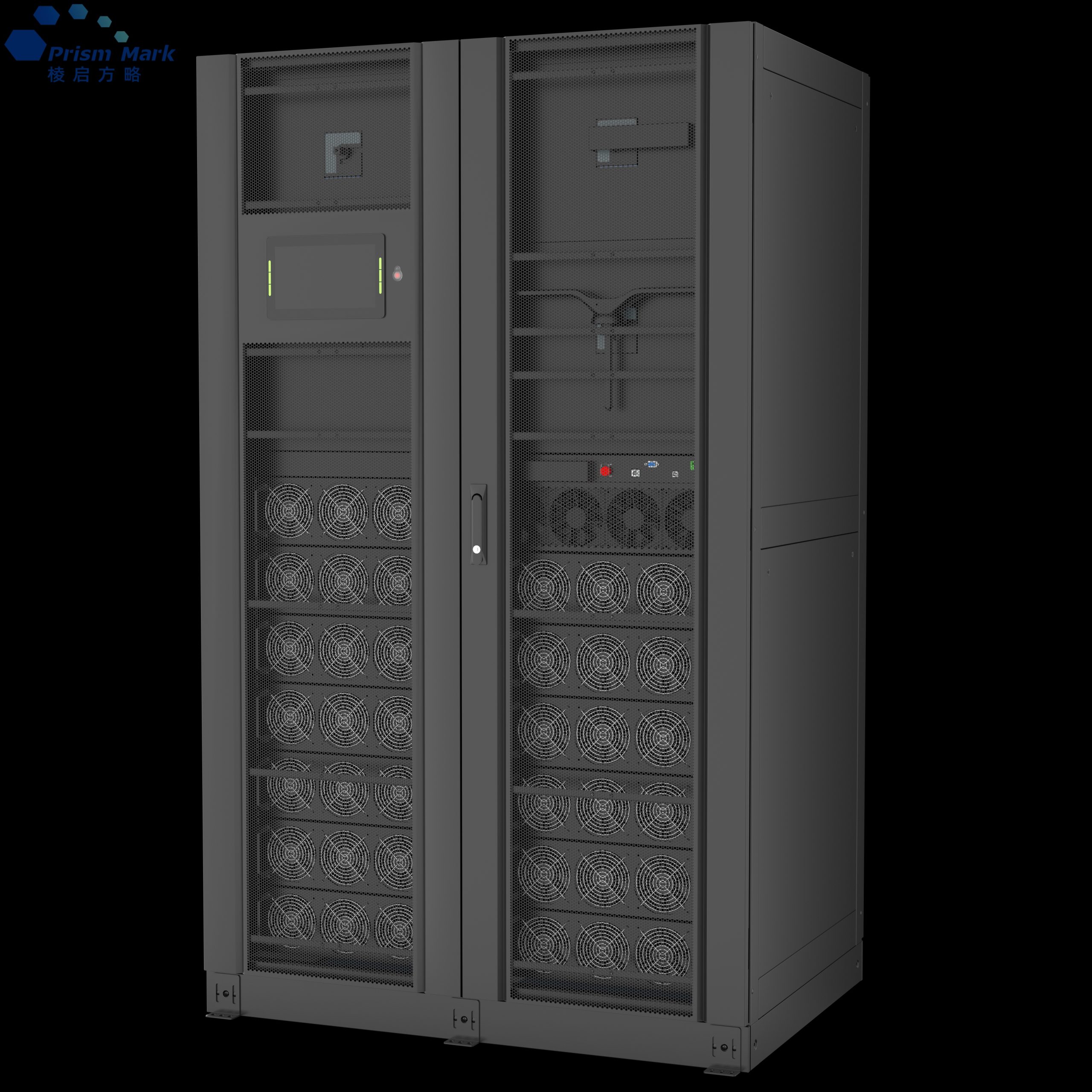

This 600KVA/600kW UPS system offers reliable power protection with a high power factor (>0.99) and low current distortion (THDi < 2% at 100% linear load). It operates on a 3-phase input (380/400/415VAC line voltage, 220/230/240VAC phase voltage) and supports both 50Hz and 60Hz input frequencies. The system can handle a wide voltage range from 304V to 478V (line voltage) at full load, with a linear derating from 100% to 50% when the voltage drops to 228V.
The battery system can be configured with a three-wire setup for ±240VDC (with 30-50 cells) or an optional two-wire setup for 480VDC (30-50 cells). The maximum charging power is 20% of the active power, with charging voltage accuracy within ±1%.
The UPS also features a flexible bypass voltage range, adjustable from -40% to +25%, with settable limits. It offers robust overload protection: it can operate continuously at 110% of rated load, up to 125% for at least 5 minutes, 125-150% for at least 1 minute, and above 150% for 1 second. This UPS ensures consistent and reliable performance across a wide range of operational conditions.
Twelve-Slot 3 Phase Online Modular UPS Monitoring System:
Battery Internal Resistance Monitoring
To ensure maximum safety and prolong the battery’s lifespan, the UPS can be upgraded with optional accessories that monitor key parameters such as voltage, internal resistance, and temperature for each individual battery. This information is displayed in real-time on the UPS screen. (Optional feature)
Temperature Monitoring of Core Components
The UPS continuously monitors the temperature of critical heat-generating components in each power module. This includes the temperature of the three-phase IGBT in both the rectifier and inverter sections, as well as intake and exhaust temperatures. At least 8 temperature points are tracked, providing clear visibility and supporting self-aging verification.
Environmental Monitoring for Data Centers
The system allows monitoring of 4 temperature and humidity sensors, 2 water leakage detectors, 2 smoke detectors, and 4 sets of individual battery measurements, ensuring comprehensive monitoring of the environment.
Safety Twelve-Slot 3 Phase Online Modular UPS:
With an IP20 protection rating, it effectively prevents solid objects (such as dust) from entering the equipment interior, ensuring its reliability in complex environments. The UPS screen integrates 128M Flash, supporting no less than 100,000 local history records and historical data storage. It can also support external SD card expansion to achieve unlimited data storage. Ensure data security to the greatest extent.
Three-Phase Online UPS Working Mode:
3-Phase Input, 3-Phase Output (3-in, 3-out)
3-Phase Input, Single-Phase Output (3-in, 1-out)
Single-Phase Input, Single-Phase Output (1-in, 1-out)
Double-Conversion Online Mode
Twelve-Slot 3 Phase Online Modular UPS Application:
It is widely applied in various industry fields such as government, finance, communication, education, transportation, meteorology, radio and television, industry and commerce, taxation, medical and health care, energy and power, etc.
