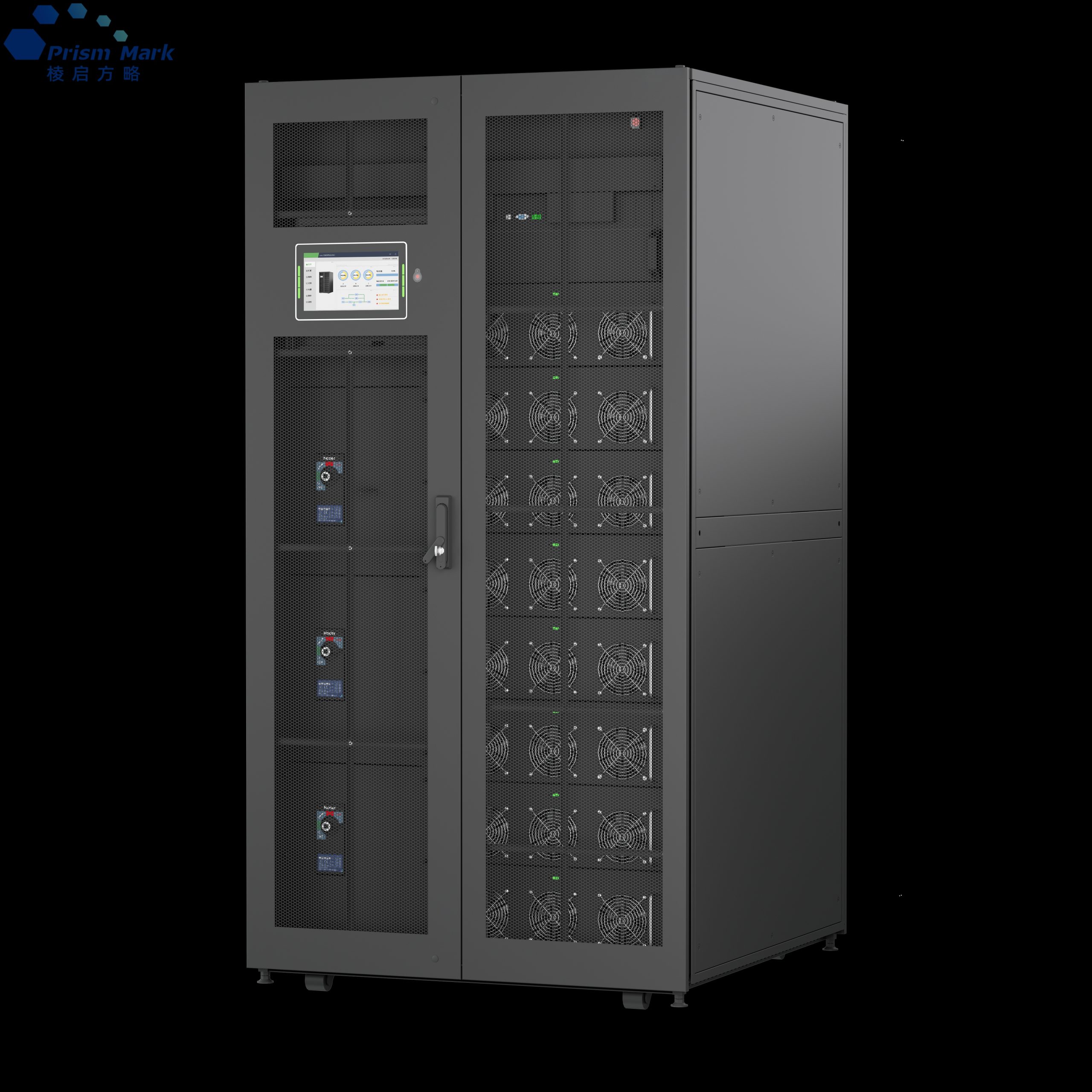

50-400kW Eight-Slot UPS：
The AC400/50 50-400kW Eight-Slot UPS is designed for high-performance power protection with a 3-phase + N line + PE input wiring configuration. It supports a wide input voltage range of 304-478VAC (line voltage) at full load, with a linear derating from 100% to 50% when the voltage drops to 304~228VAC. The bypass voltage range is customizable, with default settings from -20% to +15%, and can be adjusted for different voltage limits. Featuring a user-friendly 10-inch color LCD touch screen combined with LED indicators, it offers clear real-time monitoring. With a working temperature range of 0-40°C and storage temperatures from -25°C to 70°C, the AC400/50 is built to operate reliably in various environments and conditions.
Eight-Slot 3 Phase Online Modular UPS Advantages:
Reliable Control System: Featuring advanced N+X control logic design, the system is fully redundant with backup for each component, ensuring higher availability and reliability.
High Power Factor Output: Delivers a power factor of 1.0, offering stronger load capacity and better impact resistance compared to the traditional 0.9 power factor.
Stable Output Performance: The consistency of module output current ranks among the top in the industry, ensuring stability and reliability, which extends the lifespan of downstream load equipment.
Core Component Temperature Monitoring: Real-time monitoring of critical heat-generating components in each power module, including rectifier and inverter three-phase IGBT temperatures, as well as inlet and outlet temperatures. The system displays no fewer than 8 temperature monitoring points and supports self-aging verification.
Environmental Monitoring in the Data Center: Supports 4 temperature and humidity monitoring points, 2 leak detection points, 2 smoke detection points, and 4 battery cell monitoring points to ensure the safety of the data center environment.
Powerful Local Storage Capability: Equipped with 128M Flash, the UPS can store up to 100,000 historical records and data. It also supports external SD card expansion for unlimited data storage.
Online Modular UPS Working Mode:
| 3-Phase Input, 3-Phase Output | 3-Phase Input, Single-Phase Output |
| Single-Phase Input, Single-Phase Output | Double-Conversion Online Mode |
Eight-Slot 3 Phase Online Modular UPS Application:
It is widely applied in various industry fields such as government, finance, communication, education, transportation, meteorology, radio and television, industry and commerce, taxation, medical and health care, energy and power, etc.
