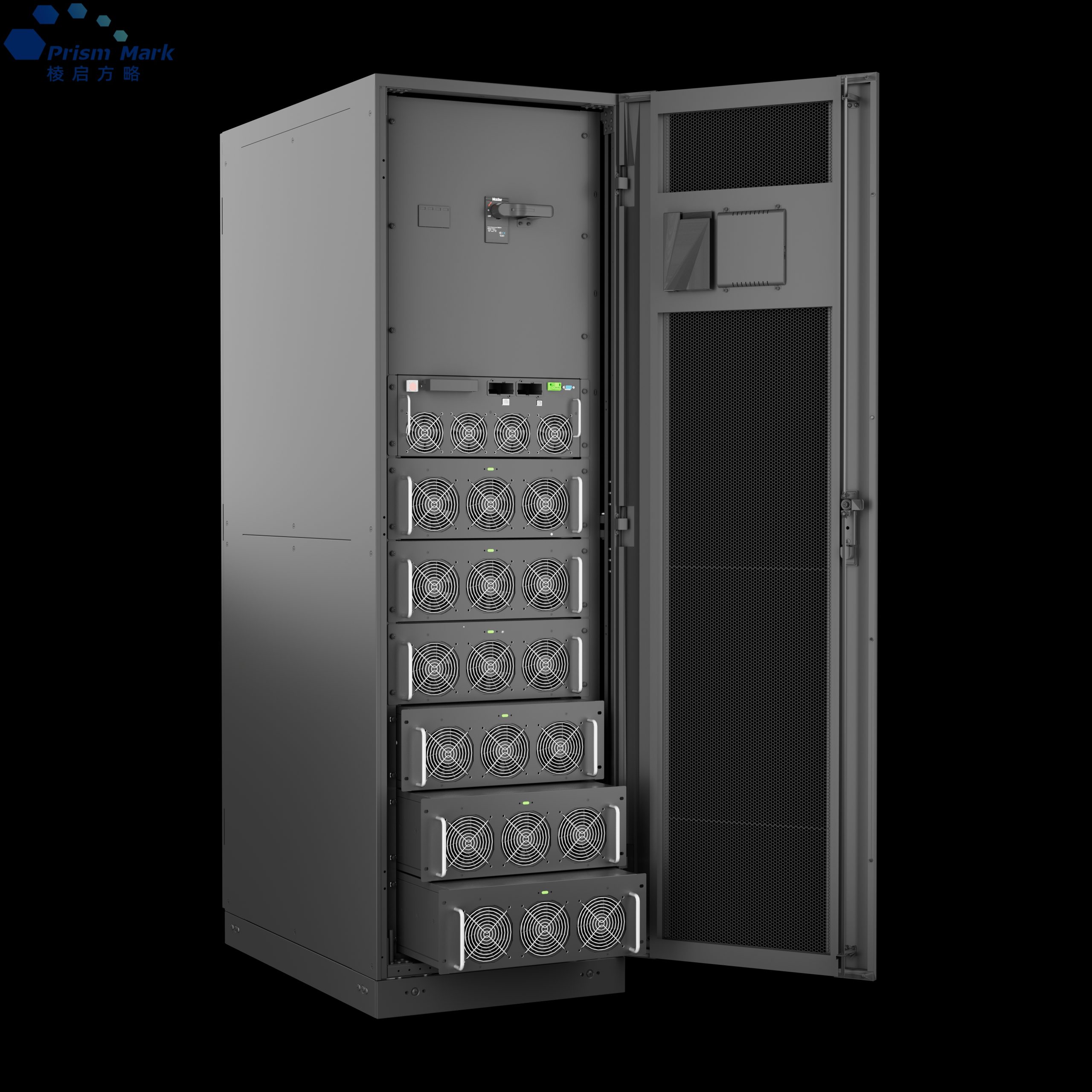

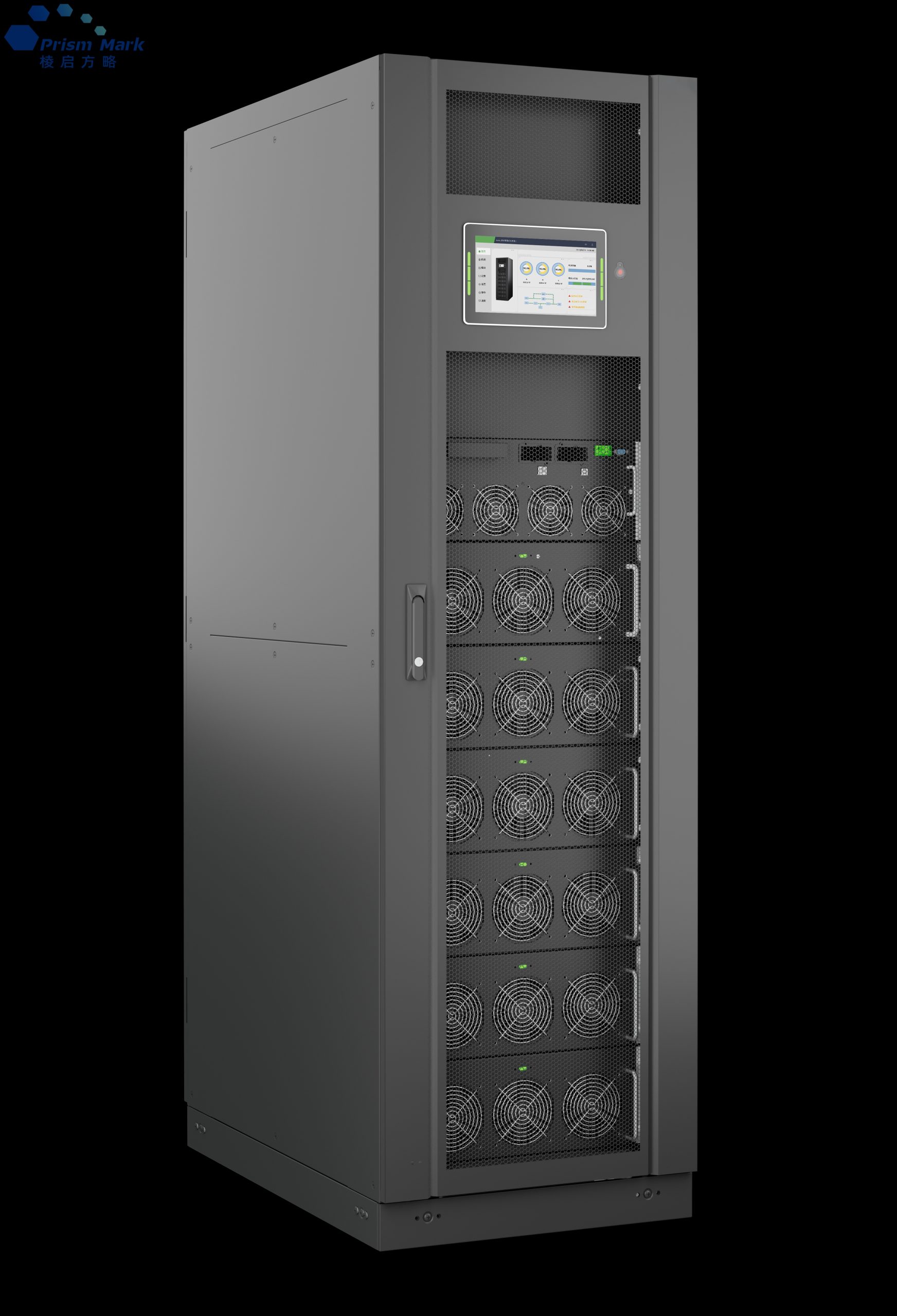

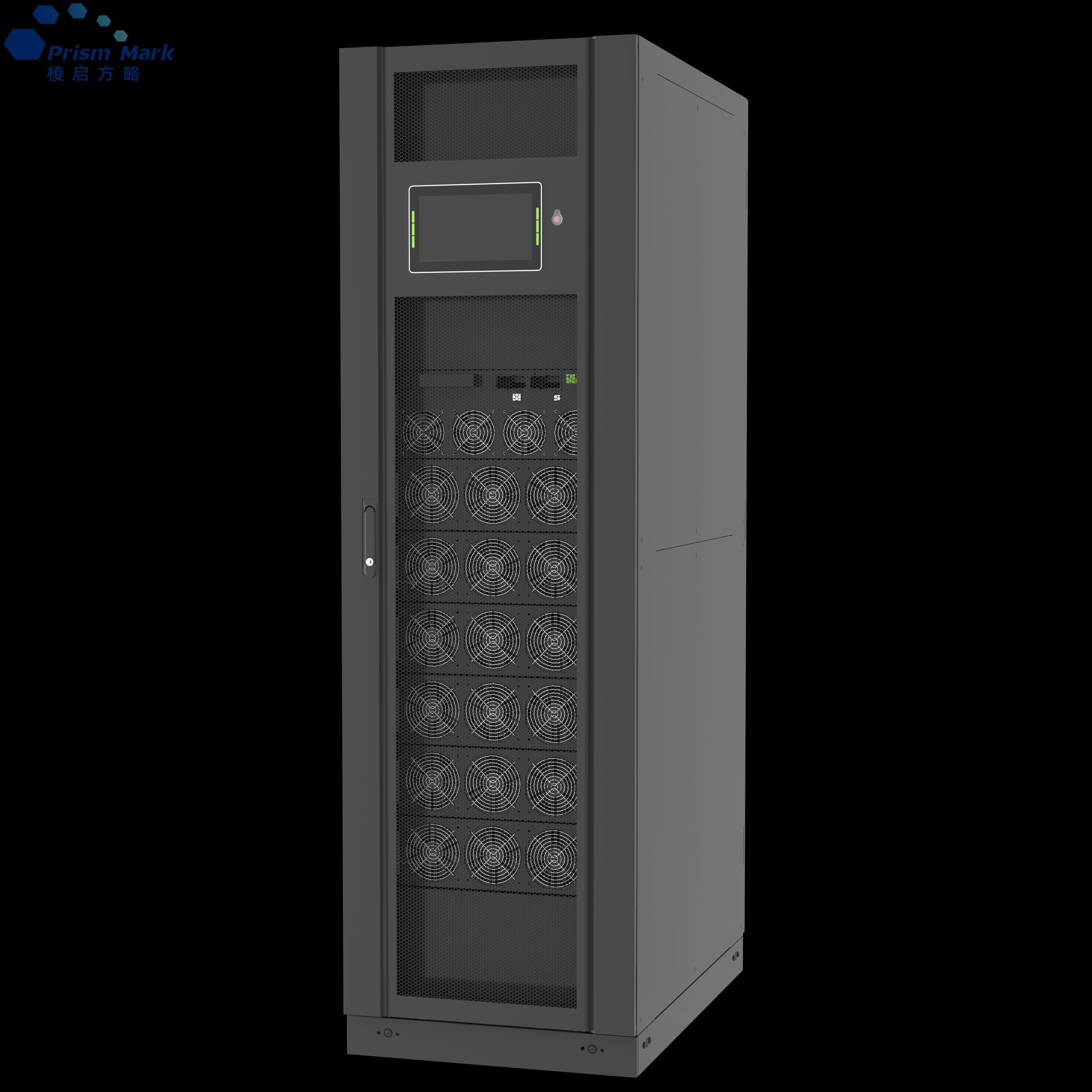

50-300kW Smart Online Modular UPS Cabinet:
This Smart Online Modular UPS supports 380/400/415VAC input voltage with a power factor >0.99 and low current distortion (THDi < 2% at full load). It operates within a voltage range of 304-478VAC and a frequency range of 40-70Hz. The battery voltage is configurable with three-wire systems at ±240VDC or optional two-wire systems at 480VDC. It offers up to 20% of active power for charging, with voltage accuracy within ±1%. Designed for high efficiency, this product provides reliable performance in various power environments.
3 Phase Smart Online Modular UPS Key Features:
High Power Density: The UPS boasts a compact design, saving more than 10% of space compared to similar industry products, allowing for efficient use of space in various installations.
Cost-Effective & Lithium Battery Compatible: With a design supporting battery systems without a neutral line (optional), this UPS is cost-efficient and easily adapts to lithium batteries, making it a versatile solution for modern energy storage needs.
Superior Environmental Adaptability: Equipped with comprehensive protection at the system, board, and component levels, the UPS is highly reliable in harsh operating environments, ensuring maximum operational uptime.

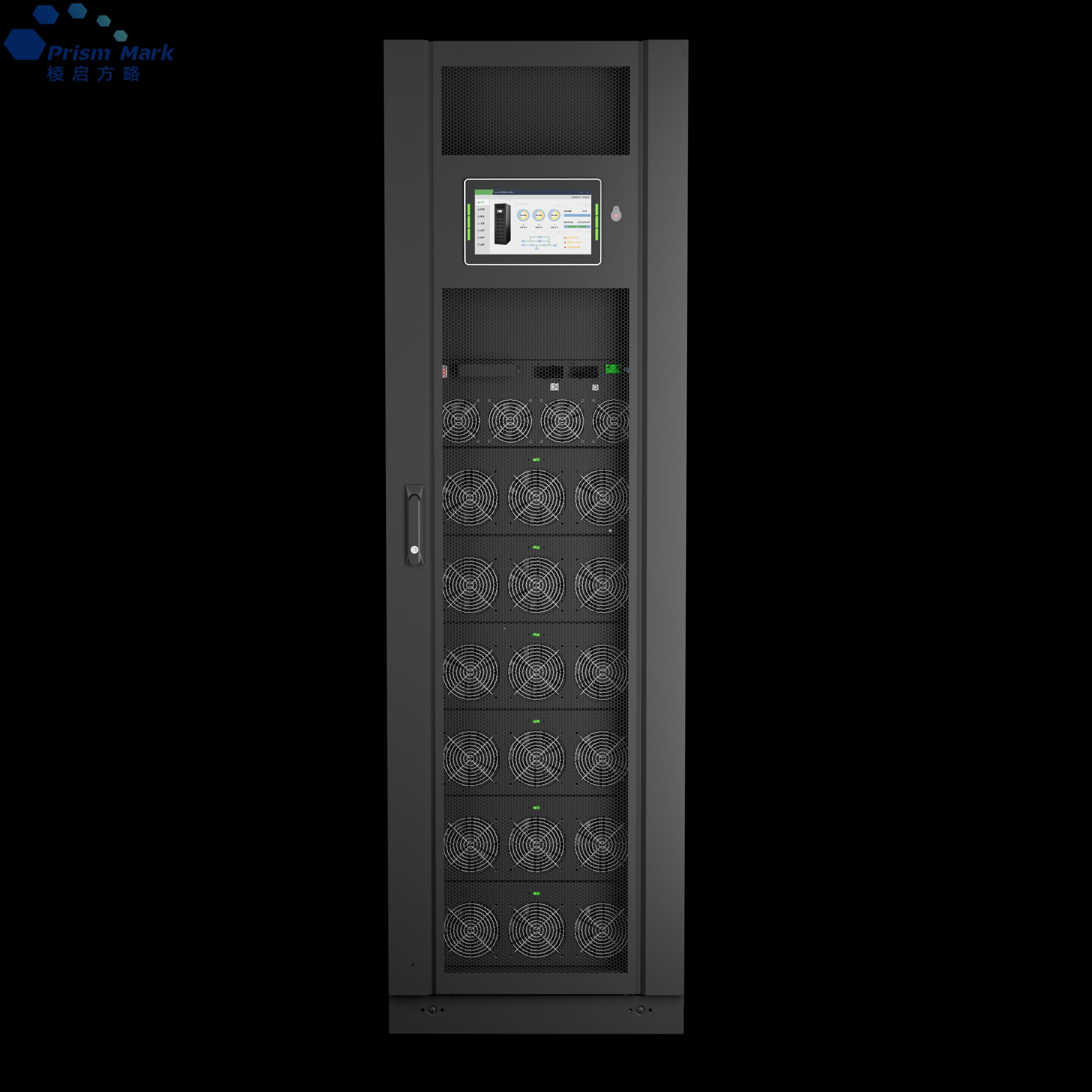

Large LCD Touch Screen: The UPS features a large, user-friendly 10-inch LCD touch screen with colorful graphical displays, providing an intuitive interface for easy operation and monitoring.
Highly Integrated PCB Design: The UPS is designed with a highly integrated PCB, improving its assembly process, reducing human error, and ensuring smoother production lines.
Optimized Heat Dissipation: The product includes an optimized heat dissipation layout with higher design margins, ensuring better thermal management and system stability. Even if a single fan fails, the UPS can still carry a load of up to 70%, reducing the risk of overheating.
50-300kW 3 Phase Smart UPS Working Mode:
- 3-Phase Input, 3-Phase Output (3-in, 3-out)
- 3-Phase Input, Single-Phase Output (3-in, 1-out)
- Single-Phase Input, Single-Phase Output (1-in, 1-out)
- Double-Conversion Online Mode
Safety Online Modular UPS System:
Battery Internal Resistance Monitoring: The UPS can be optionally upgraded with accessories to monitor crucial parameters such as voltage, internal resistance, and temperature for each individual battery. This real-time data is displayed directly on the UPS screen, ensuring maximum safety and extending battery lifespan.
Temperature Monitoring of Core Components: The UPS continuously monitors the temperature of key heat-generating components in each power module, including the three-phase IGBT in both the rectifier and inverter sections, along with intake and exhaust temperatures. At least 8 temperature points are tracked, offering clear visibility and supporting self-aging verification.
Comprehensive Environmental Monitoring for Data Centers: The system can monitor 4 temperature and humidity sensors, 2 water leakage detectors, 2 smoke detectors, and 4 sets of individual battery measurements, ensuring comprehensive environmental monitoring for data centers and preventing potential hazards.
Strong Protection and Data Storage: With an IP20 protection rating, this UPS effectively safeguards against dust and other solid particles, ensuring reliability even in complex environments. The integrated 128M Flash memory supports local storage of up to 100,000 historical records. Additionally, external SD card expansion is available for unlimited data storage, maximizing data security.
