UPS Introduction

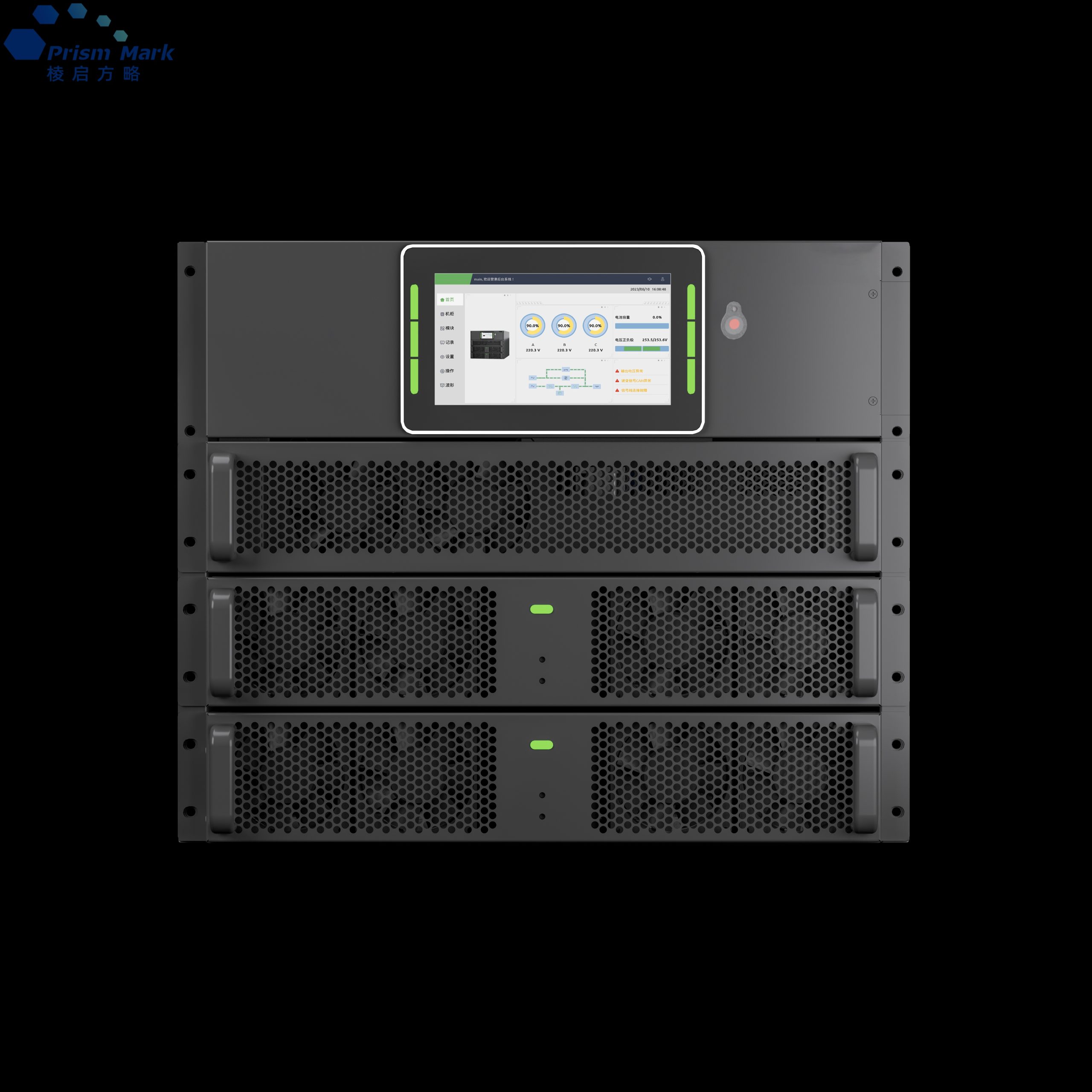

40KW Rack-Mounted Modular UPS system is engineered for high power density and modular efficiency, ideal for environments with limited space yet high power requirements. It features a 20-40kVA PK tower-style power model with a modular 3-phase input and output configuration. The total system capacity is no less than 40kVA, with each power module rated at 20kVA or higher, and at least two power modules are included to ensure redundancy. The UPS is designed for rack-mounted installation with a maximum height of 9U and each power module occupies no more than 2U. With a depth of 700mm, the unit provides sufficient rear space for wiring and maintenance, ensuring easy access and efficient installation while optimizing power density.
Three-Phase Online UPS Working Mode:
3-Phase Input, 3-Phase Output (3-in, 3-out)
3-Phase Input, Single-Phase Output (3-in, 1-out)
Single-Phase Input, Single-Phase Output (1-in, 1-out)
Double-Conversion Online Mode
Rack-Mounted Modular UPS Advantages:
1.Reliable and stable: Excellent control logic and good output consistency, brand-new isolated air duct design, all-round protection upgrade, multi-point temperature monitoring and early warning
2.Flexible expansion: The investment planning enables “on-demand expansion”, allowing users to achieve “dynamic growth” along with business development. This not only meets the demand for equipment expansion in the later stage but also reduces the initial purchase cost
3.High redundancy: The power section and control section are fully redundant in design, with hot-swappable technology for all modules. Power modules can be removed and installed at will during system operation without affecting the system’s operation and output
4.Convenient after-sales maintenance: The technical threshold for maintenance is low, the maintenance time is shortened to the minute level, and the system operates normally without interruption during the maintenance process
Modular UPS With Touch Screen Monitoring System:
Battery internal resistance monitoring function
To ensure the safety and lifespan of battery usage to the greatest extent, UPS can add optional accessories to achieve the function of monitoring the voltage, internal resistance, temperature and other information of each battery cell, which can be displayed in real time on the UPS screen. (Optional)
Core component temperature monitoring function
Real-time temperature monitoring is carried out on the key heat-generating component points of each power module, including the temperature of the rectifier ABC three-phase IGBT, the inverter ABC three-phase IGBT, the inlet temperature, the outlet temperature, etc. No less than 8 temperature detection points can be visually displayed, and self-aging verification can be passed.
Computer room environmental quantity monitoring function
Supports 4 channels for temperature and humidity detection, 2 channels for water leakage detection, 2 channels for smoke detection, and 4 groups of battery cell detection
Modular Three-Phase Online UPS Application:
- Government: Ensures that government data processing and communication systems run smoothly during power outages.
- Finance: Protects bank trading platforms and data centers, ensuring transaction security and uninterrupted services.
- Telecommunications: Ensures 24/7 operation of communication base stations and data centers.
- Education: Guarantees the continuous operation of educational equipment and laboratory instruments in schools and research institutions.
- Transportation: Provides power protection for transportation systems like airports and subways, ensuring safety and efficiency.
- Meteorology: Supports meteorological equipment and data centers, providing accurate weather forecasts and disaster warnings.
- Broadcasting and Television: Ensures stable operation of TV station equipment, preventing program interruptions.
- Business and Taxation: Protects enterprise and tax systems, ensuring the security of financial data.
- Healthcare: Guarantees the continuous operation of critical hospital equipment, ensuring patient safety.
- Energy and Power: Ensures stable operation of power monitoring and dispatch systems, preventing production interruptions.
