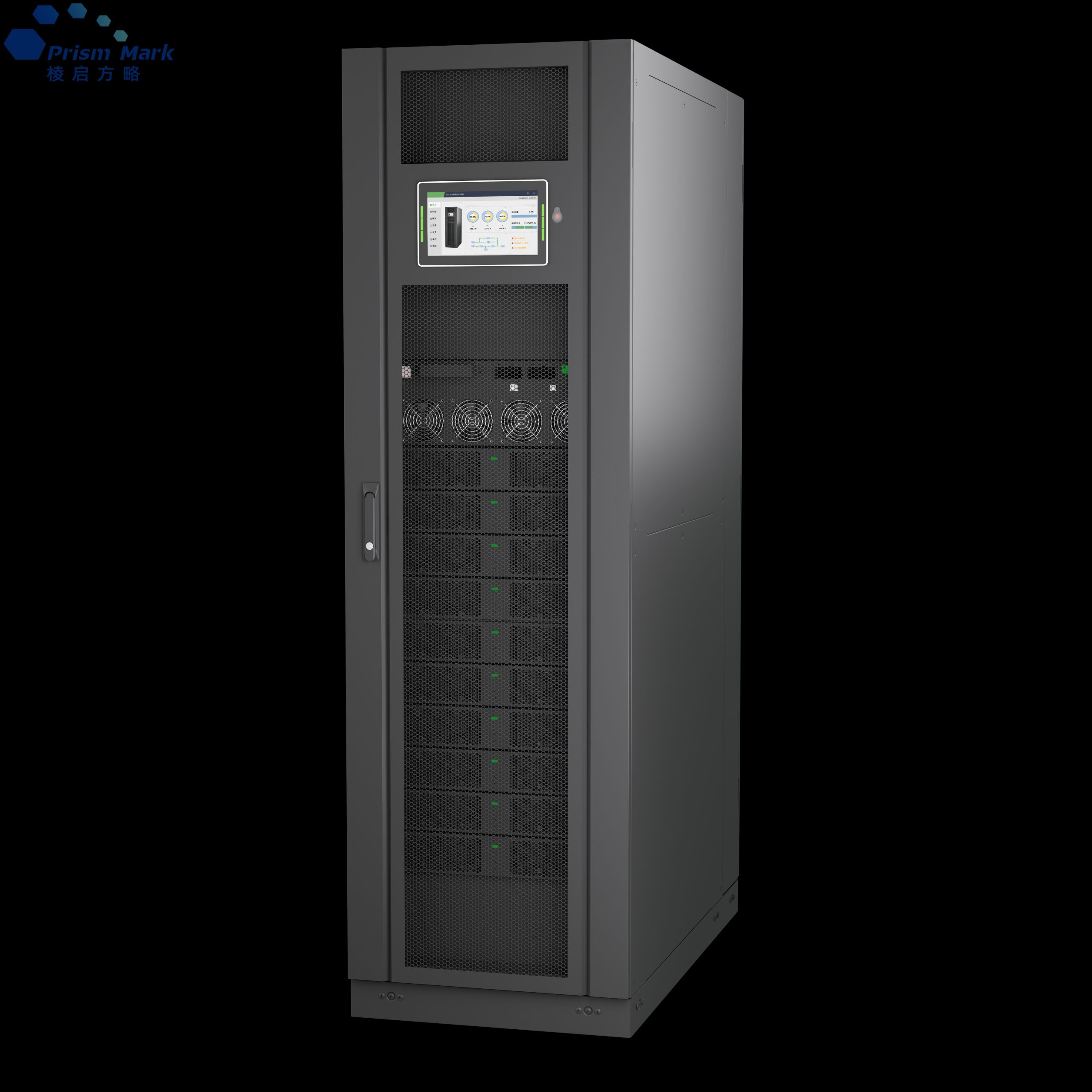

30-300KW Intelligent Module UPS With Touch Screen Rack-Mounted Tower-Mounted

Input Voltage and Frequency: Supports 380-415VAC (line voltage) and 50/60Hz frequency, compatible with different power systems.
Power Factor and Current Distortion: Power factor > 0.99, current distortion rate (THDi) < 3%, efficient and stable.
Battery System: Battery voltage ±240VDC, supports 30-50 cells, charging power up to 20%, charging accuracy ±1%.
Monitoring: Supports 4 channels for temperature and humidity detection, 2 channels for water leakage detection, 2 channels for smoke detection, and 4 groups of battery cell detection

Features:
Voltage Range: Supports 304-478VAC (line voltage), wide load range.
Frequency Range: Adaptable to frequency fluctuations between 40-70Hz.
Dimensions: Cabinet size 60010002000mm, module 2U (44067885mm).
Working mode: Three-in and three-out, dual-shift online operation

Inquiry Now

WhatsApp

Introduction
Parameters
Download

30-300KW Intelligent Module UPS：

Intelligent Module UPS is a 300KVA/300kW UPS system that supports multiple input and output configurations, including 3-phase input/output, single-phase input/output, and double-conversion online mode. It operates with an input voltage range of 380/400/415VAC (line voltage) and 220/230/240VAC (phase voltage), and supports a frequency range of 50/60Hz.

Intelligent Module UPS Key Features Include:

Power factor > 0.99 and current distortion (THDi) < 3% for high efficiency.
Wide voltage range (304-478VAC) with linear derating from 100% to 50% under lower voltage conditions.
Stable output with a power factor of 1, voltage accuracy of ±1%, and THDu < 1% for linear loads.
Fast dynamic response (<5%) and recovery time (<20ms).
Adjustable frequency tracking and high overload tolerance (up to 150%).

Intelligen Online UPS Working Mode:

3-Phase Input, 3-Phase Output	3-Phase Input, Single-Phase Output
Single-Phase Input, Single-Phase Output	Double-Conversion Online Mode

30-300KW Intelligent Module UPS Applications:

UPS is widely used in various industries and sectors such as government, finance, telecommunications, education, transportation, meteorology, broadcasting, taxation, healthcare, and energy and power.

Government: UPS ensures that critical governmental data and services remain operational during power outages.
Finance: In banks and financial institutions, UPS systems safeguard electronic transactions and sensitive data during power interruptions.
Healthcare: In hospitals, UPS supports life-saving equipment like ventilators, ensuring they remain functional during power disruptions.
Telecommunications: UPS systems maintain uninterrupted service for communication networks during electrical failures.

Model		AC300/30
Capacity		300KVA/300kW
Main road input	Input Wiring	Phase 3 + N line + PE
	Input Voltage	380/400/415VAC(line voltage) 220/230/240VAC(phase voltage)
	Input Frequency	50/60Hz
	Power Factor	>0.99
	Current Distortion Rate	THDi<3%(100% linear load)
	Voltage Range	304-478VAC(line voltage) full load; The 304~228VAC(line voltage) load is linearly derated from 100% to 50%
	Frequency Range	40-70Hz
Battery	Battery Voltage	Battery three-wire :±240VDC(30-50 cells can be set)
	Charging Power	Maximum 20%* active power
	Charging voltage accuracy	±1%
Bypass	Bypass Voltage	380/400/415VAC(line voltage)；220/230/240VAC(phase voltage)
	Voltage Range	Settable. The default range is -20% to +15%. Upper limits :+10%,+15%,+20%,+25%; Lower limits :-10%,-15%,-20%,-30%, -40%
	Overload Capacity	110%, long-term operation 125%< load <150%, no less than 1 minute 110%< load <125%, not less than 5 minutes >150%,1 second
Output	Rated Output Voltage	380/400/415VAC(line voltage); 220/230/240VAC(phase voltage)
	Rated Frequency	50/60Hz
	Output Power Factor	1
	Voltage Accuracy	±1.0%
	Output Dynamic Response	<5%(20%-80% -20% step load)
	Dynamic Recovery Time	<20ms(0%-100% -0% step load)
	Output Total Harmonic Distortion (THDu)	<1%(linear load),<5%(nonlinear load)
	Inverter Overload	110%, switch to bypass after 1 hour; 125%, switch to bypass after 10 minutes; 150%, switch to bypass after 1 minute; >150%, switch to bypass after 200ms
	Frequency Accuracy	0.10%
	Tracking Range	Settable: ±0.5Hz-±5Hz, default ±3HZ
	Tracking Rate	Settable: 0.5Hz/S-3Hz/S, default 0.5Hz/S
	Peak Ratio	3：1
	Three-Phase Phase Accuracy	120°±0.5°
System	System efficiency	Main road mode ≥96.5%; Battery mode >96.5%
	Display	LCD+LED+ 7-inch color touch screen
	Safety regulations	IEC62040-1，IEC60950-1
	EMC	IEC62040-2;IEC61000-4-2(ESD);IEC61000-4-3(RS);IEC61000-4-4(EFT);IEC61000-4-5(Surge)
	Protection grade	IP20
	Standard configuration	USB,RS232,RS485, dry contact card, battery cold start
	Select accessories	SNMP card, extended dry contact card, parallel component, LBS, APP/WiFi/ Bluetooth
	Working environment	0-40℃(operating temperature) -25℃ to 70℃(storage temperature) 0-95%(non-condensation)
	Noise (dB)(1 meter)	65dB @ 100% load, 62dB @ 45% load
Size	Cabinet (WDH)mm	60010002000
	Module (WDH)mm	44067885(2U)
