1200W-2800W Anti-reverse ﬂow micro inverter

This anti-reverse flow micro inverter comes with an RS485 interface, which can be connected to the collector to achieve the anti-reverse flow function, preventing excess power from flowing back into the grid. It is ideal for household power generation systems, ensuring the stability and safety of power flow.

Features:
99% conversion efficiency with dynamic power optimization.
Automatically adjusts power based on forecasts, with real-time monitoring and alerts.
IP66 rated for durability in extreme conditions.
CE/VDE certified with in-house R&D and manufacturing.

Inquiry Now

WhatsApp

Introduction
Parameters
Download

Anti-reverse ﬂow micro inverter key Features:

Ultra-High Efficiency: The MPPT function offers a 99% conversion rate and dynamically adjusts voltage and current waveforms to maximize energy efficiency.

Intelligent and Predictive Control: The system intelligently anticipates weather and power demands, automatically adjusting its output. It also includes real-time monitoring and fault alerts.

Superior Durability: An IP66 protection level and multiple circuit safeguards ensure stable and reliable operation, even in extreme conditions.

Guaranteed Quality: The product is backed by international certifications like CE and VDE, and its quality is assured through integrated R&D and manufacturing processes.

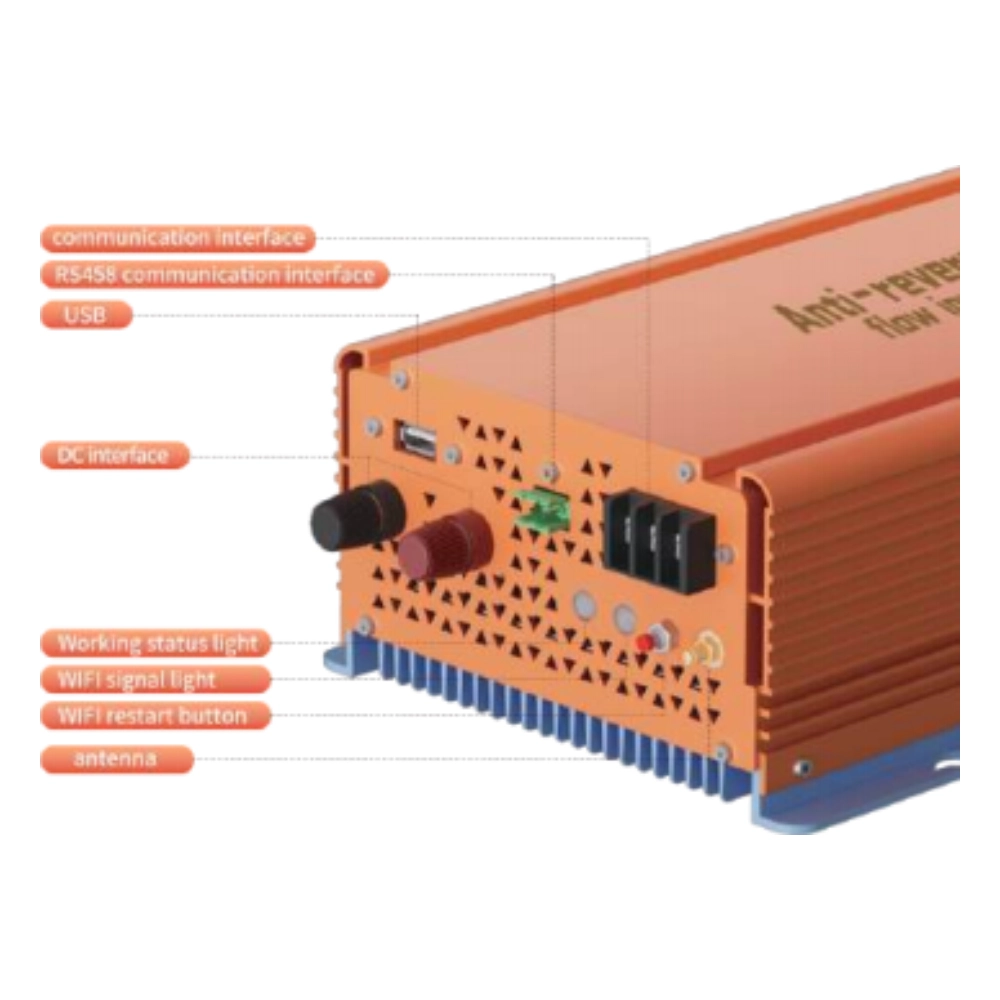

1200W-2800W Anti-reverse ﬂow micro inverter Hardware

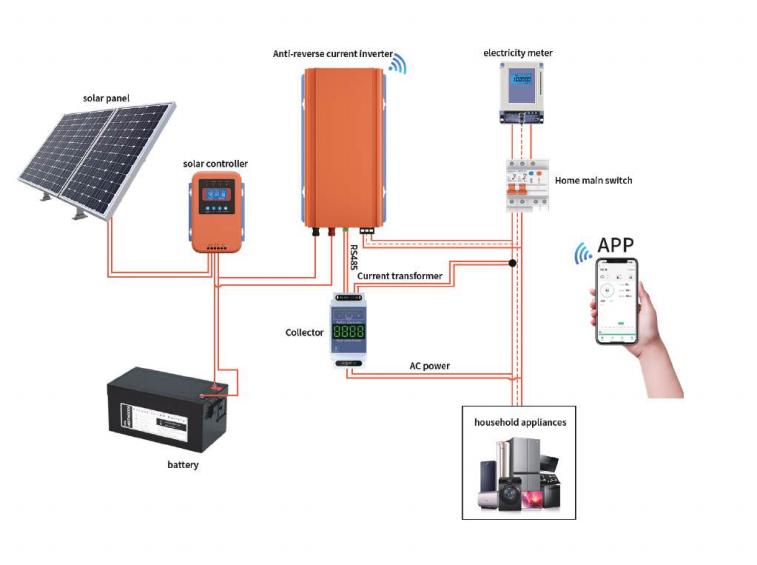

Anti-reverse ﬂow micro inverter application

model	1200W 1400W 1600W 2000W 2400W 2800W
Input data (DC,PV)
Enter MC4 connector quantity	4 sets
MPPT voltage range	22V- 48V
Working voltage range	18V- 60V
Maximum input voltage	60V
Starting voltage	22V
Maximum input power	1200W 1400W 1600W 2000W 2400W 2800W
aximum input current	12A4 14A4 16A4 20A4 24A4 28A4
Output data(AC)
single phase grid	120V&230V
Rated output power	1200W 1400W 1600W 2000W 2400W 2800W
Maximum output power	1200W 1400W 1600W 2000W 2400W 2800W
Standard output current	@120VAC:10A/@230VAC:5 . 2A
	@120VAC:13 . 3A/@230VAC:6 . 9A
	@120VAC:16 . 6/@230VAC:8 . 6A
	@120VAC:18A/@230VAC:10 . 4A
	@120VAC:11 . 6A/@230VAC:6A
	@120VAC:20A/@230VAC:12A
Standard voltage output	120VAC /230VAC
Default output voltage range	@120VAC:80V- 160V/@230VAC:180V- 270V
Power factor	>0 . 99%
total harmonic distortion	TH D <5%
Work status view	Collector/TuyaAPP
eﬃciency
peak eﬃciency	95%
The nominal MPPT eﬃciency is	99 . 5%
Night power consumption	<1w
Mechanical data
Workingenvironmenttemperature range	- 40℃ to +65℃
Storage temperature range	- 40°C to +85°C
Product size and weight (WH D) Packing size and weight (WH D)	25.5cm34cm4.2cm / 4kg
	26.2cm36cm9.5cm / 4.7kg
Maximum current of AC bus cable	20A
Waterproof level	IP66
cooling mode	natural cooling
Other functions
Communication WIFI	WIFI(cloud monitoring )
Transformer design	High frequency transformer, no isolation
Transformer design	Equipment grounding is provided by the PEin the AC cable No other ground required
protection function	Isolation island protection,voltage protection
protection function	Frequency protection,temperature protection,current protection,etc.
Certiﬁcation	In metro , V DE4105, V DE0126, CE, EN50549 . . .
